Thorlabs F240SMA-1550 Fiber Collimator with Optical Flow Cell Assembly
SKU: 66001
Raktáron
Garancia Információk
Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

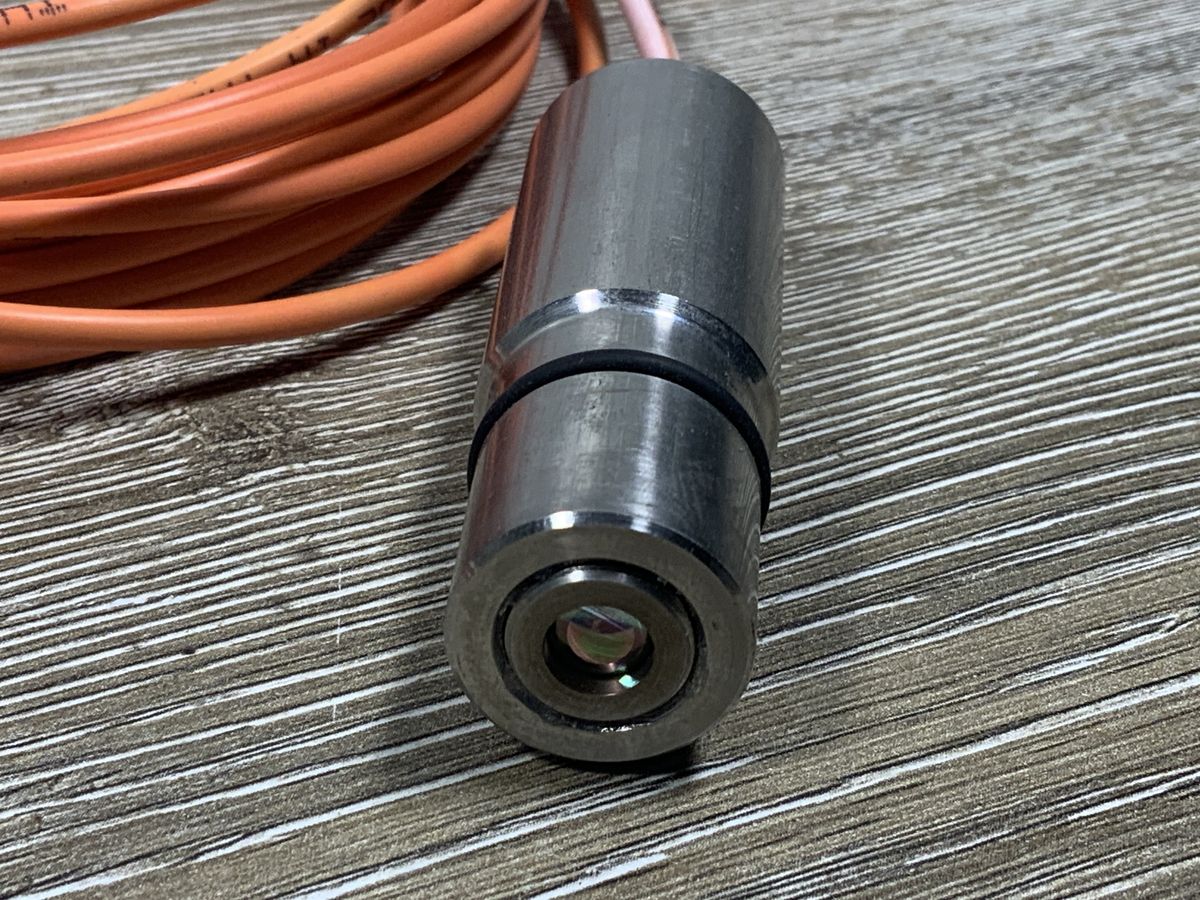

This assembly has 2 extra probes.
Cables are approx 5 meter long.

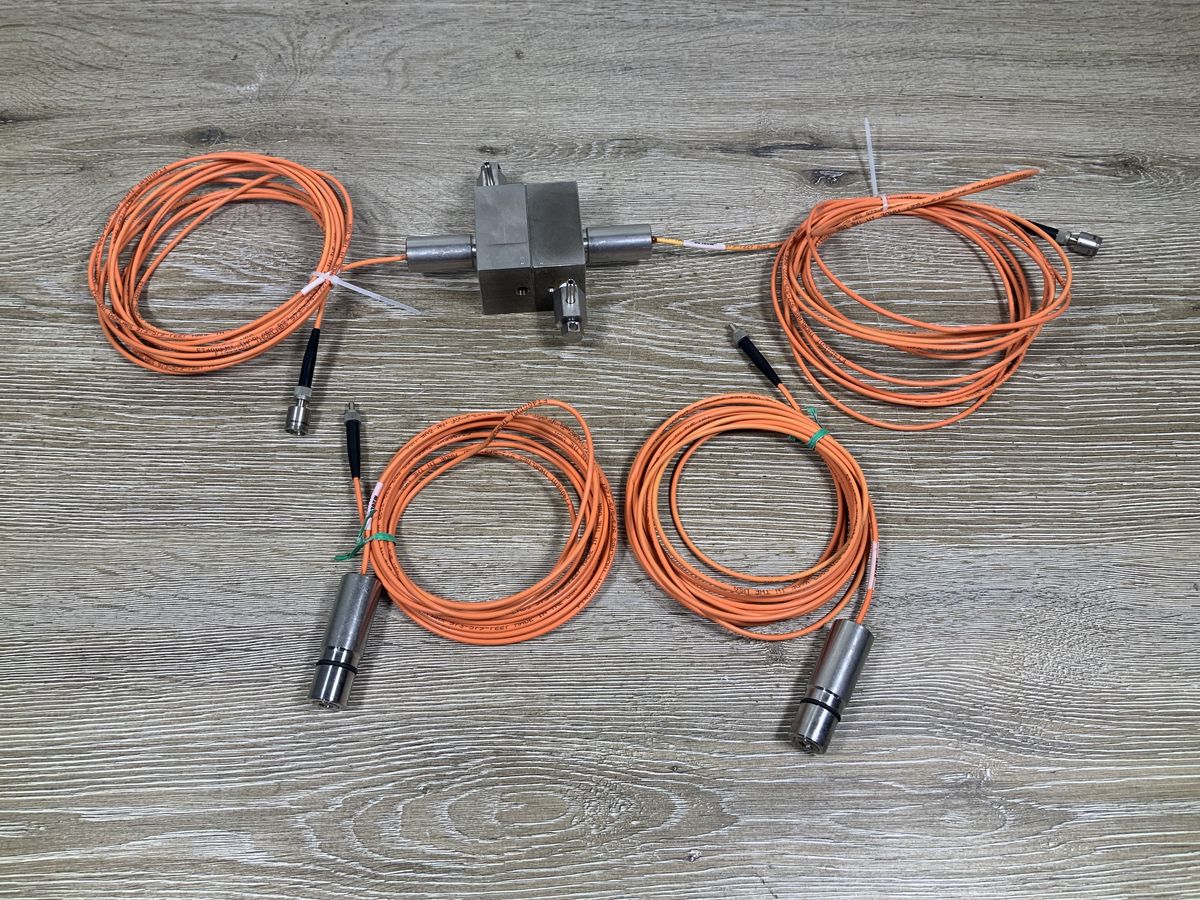

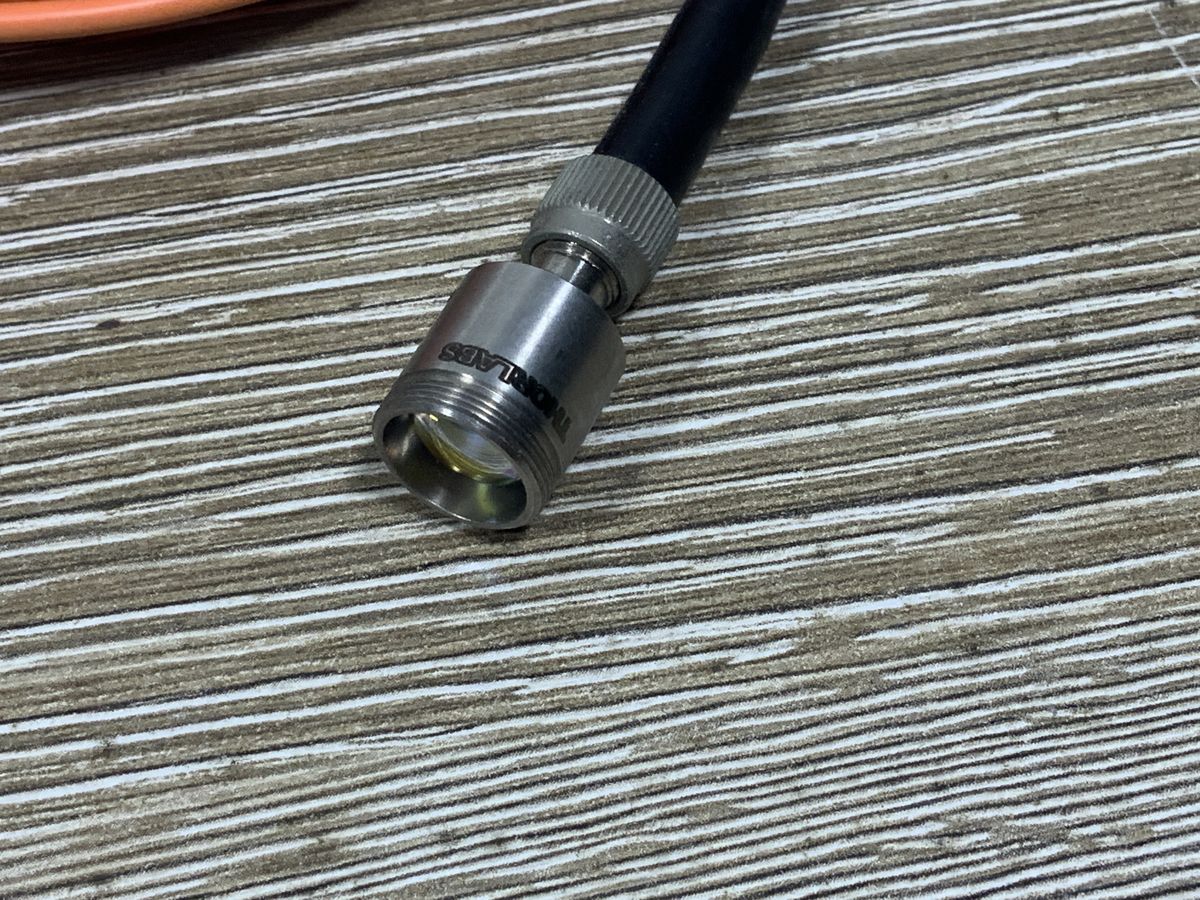

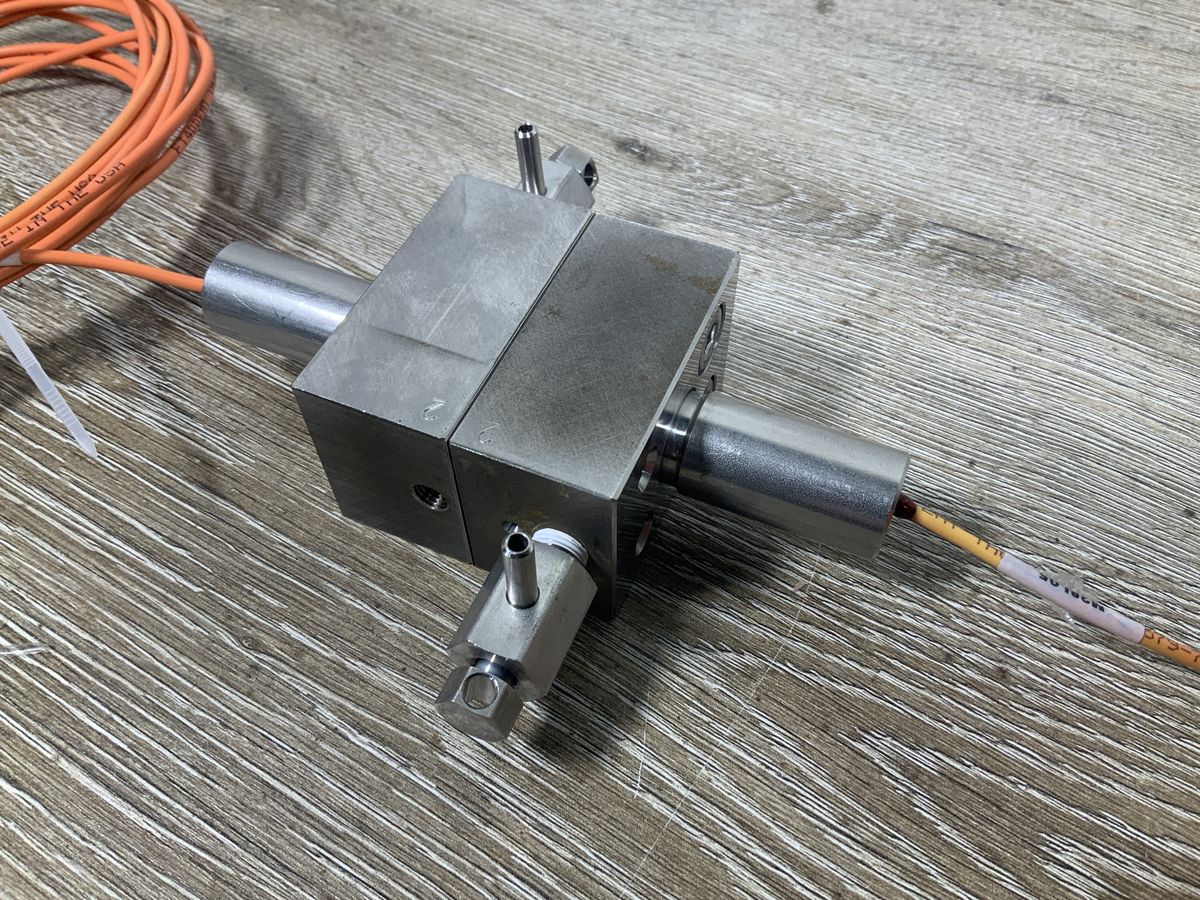

Fiber optic optical transmission flow cell assembly equipped with Thorlabs SMA905 fiber collimation packages and patch cables. Designed for inline optical spectroscopy and light transmission measurement at 1550 nm wavelength. Features a stainless steel flow cell block with fluidic ports and SMA-terminated fiber optic leads.
Specifications – F240SMA-1550 Fiber Collimator with Optical Flow Cell Assembly
| Parameter | Specification |
|---|---|

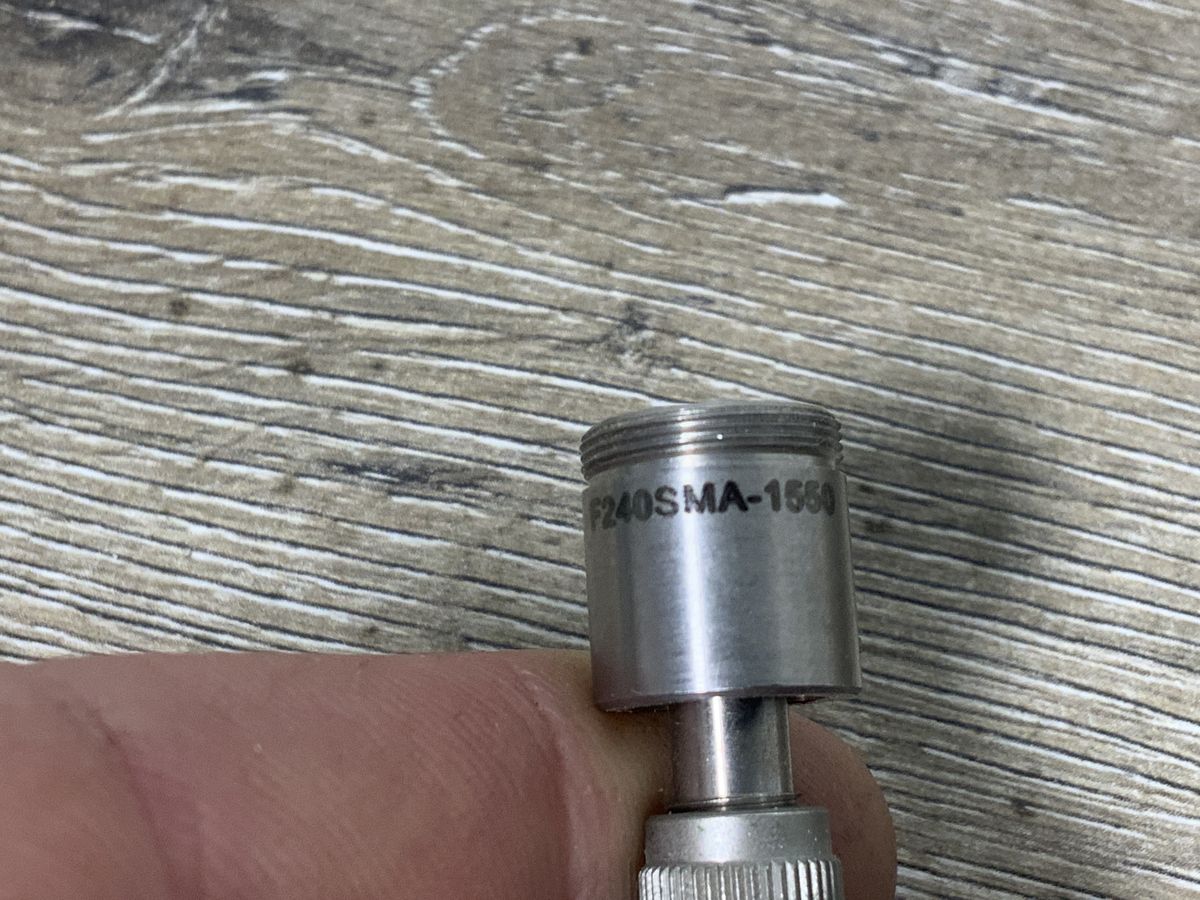

| Collimator Model | F240SMA-1550 |
| Wavelength | 1550 nm |
| Connector Type | SMA905 |
| Housing Material | Stainless Steel |
| Alignment Wavelength | 1550 nm (datasheet) |
| Focal Length | 8.17 mm (datasheet) |
| Numerical Aperture (NA) | 0.49 (datasheet) |
| Lens AR Coating Range | 1050 - 1700 nm (Ravg < 0.5%) (datasheet) |
| Waist Diameter | 1.55 mm (datasheet) |
| Waist Distance | 7.26 mm (datasheet) |
| Full-Angle Divergence | 0.073 +0.01 / -0.00° (datasheet) |
| Housing Outer Diameter | 12 mm (datasheet) |
| External Threading | M12 x 0.5 (datasheet) |
| Operating Temperature Range | -40 °C to 93 °C (datasheet) |
| Package Weight | 0.03 kg (datasheet) |
| Cable length | Approx. 5 meter |
×
![]()
