Systemair EC-BASIC-T
SKU: 8047
Raktáron
Garancia Információk
Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

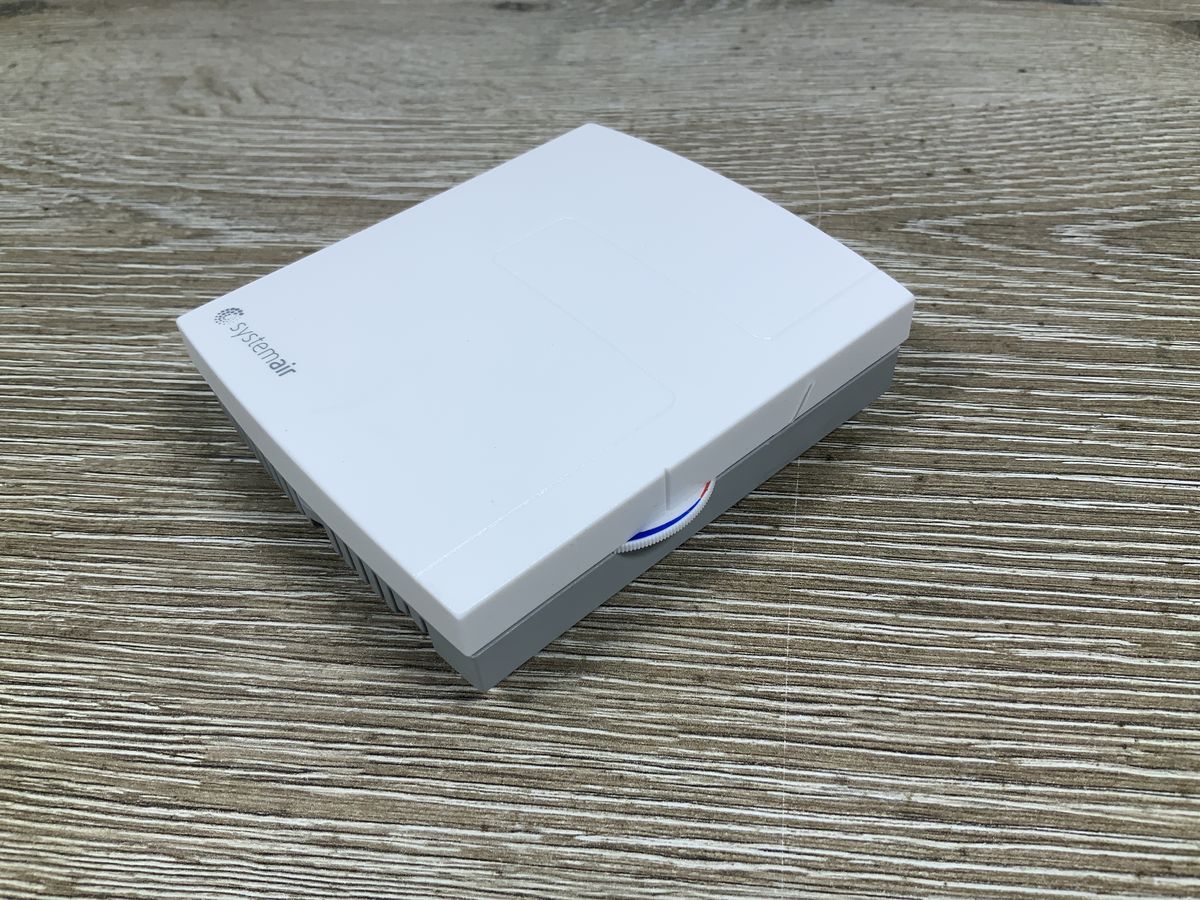

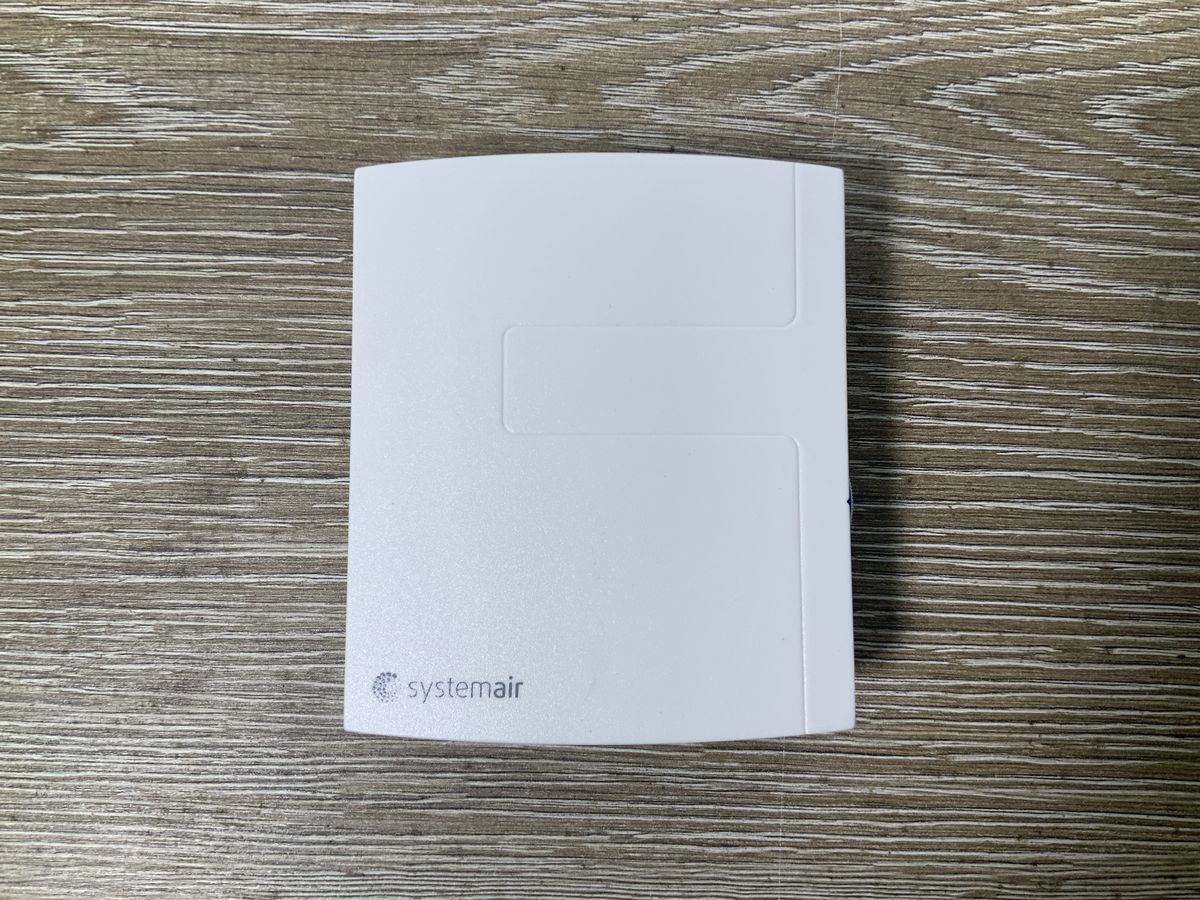

The Systemair EC-BASIC-T is a wall-mounted room temperature controller designed to regulate EC fans via a 0–10 V proportional-integral output signal. It compares actual room temperature against an adjustable temperature setpoint (5 to 30 °C) using an integrated sensor. Powered by a universal 110–240 V AC supply, it features configurable heating/cooling action and IP30 protection.

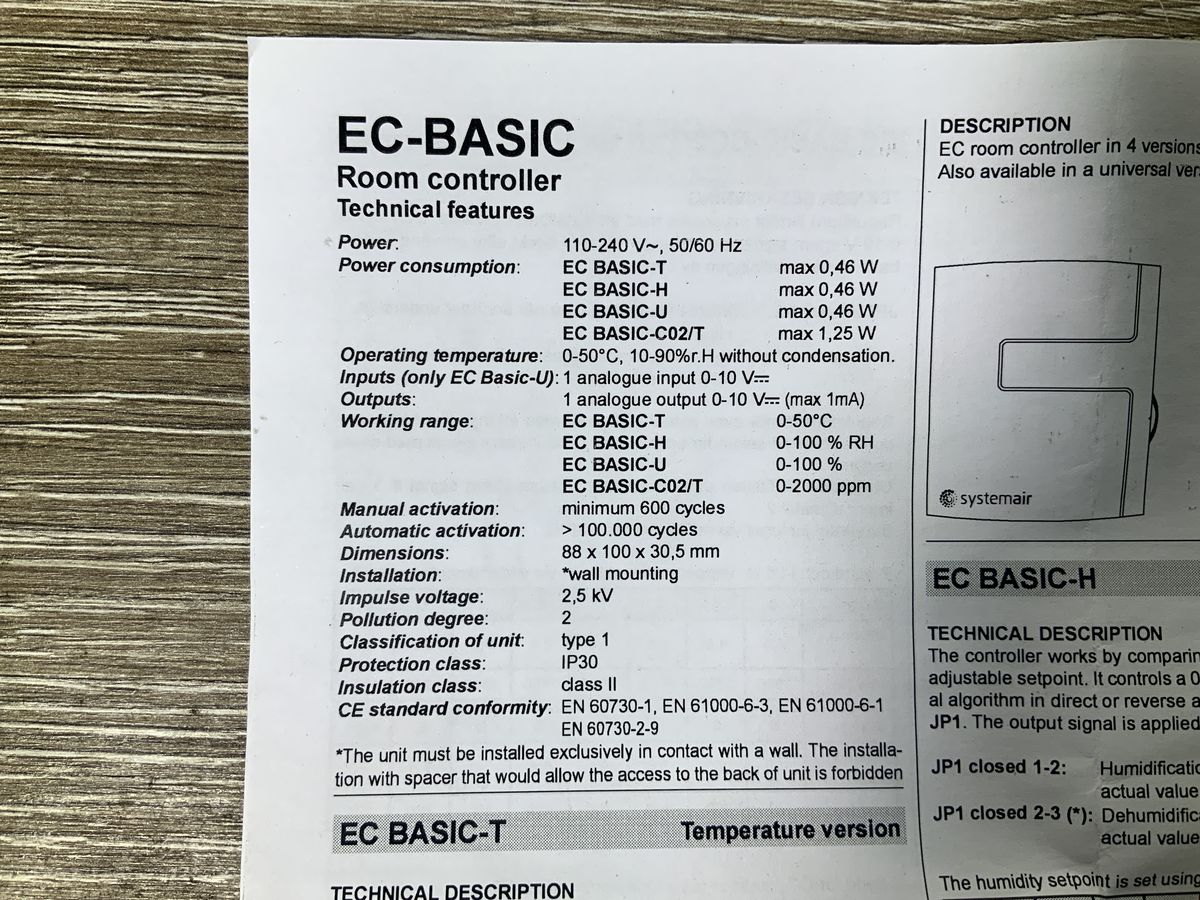

Specifications – EC-BASIC-T
| Parameter | Specification |
|---|---|
| Supply Voltage | 110-240 V AC, 50/60 Hz |
| Power Consumption | 0.46 W |
| Output Signal | 0-10 V DC (max. 1 mA) |
| Working Temperature Range | 0 - 50 °C |
| Setpoint Range | 5 - 30 °C |
| Protection Class | IP30 |
| Dimensions | 88 x 100 x 30.5 mm |
| Manufacturer | Systemair (datasheet) |
| Part Number | 24805 (datasheet) |
| Product Name | EC-Basic-T temperature (datasheet) |
| Rated Voltage | 110 to 240 V (datasheet) |
| Nominal Voltage | 230 V (datasheet) |
| Frequency | 50/60 Hz (datasheet) |
| Temperature Range | -20 to 50 °C (datasheet) |
| Temperature Setpoint | 5 to 30 °C (datasheet) |
| Enclosure Class | IP30 (datasheet) |
| Dimensions (L x W x H) | 88 x 100 x 30.5 mm (datasheet) |
| Weight | 0.135 kg (datasheet) |
×
![]()
