Nyomásmérő

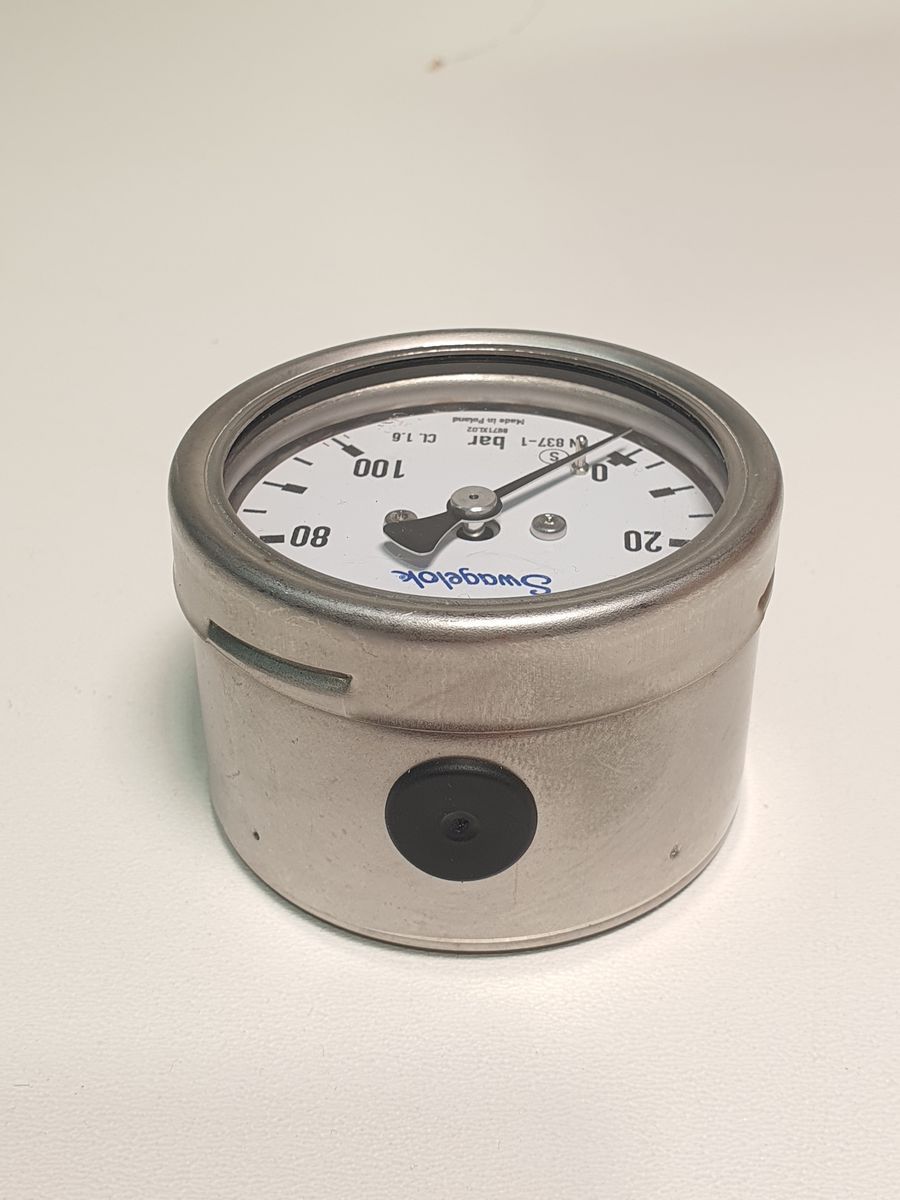

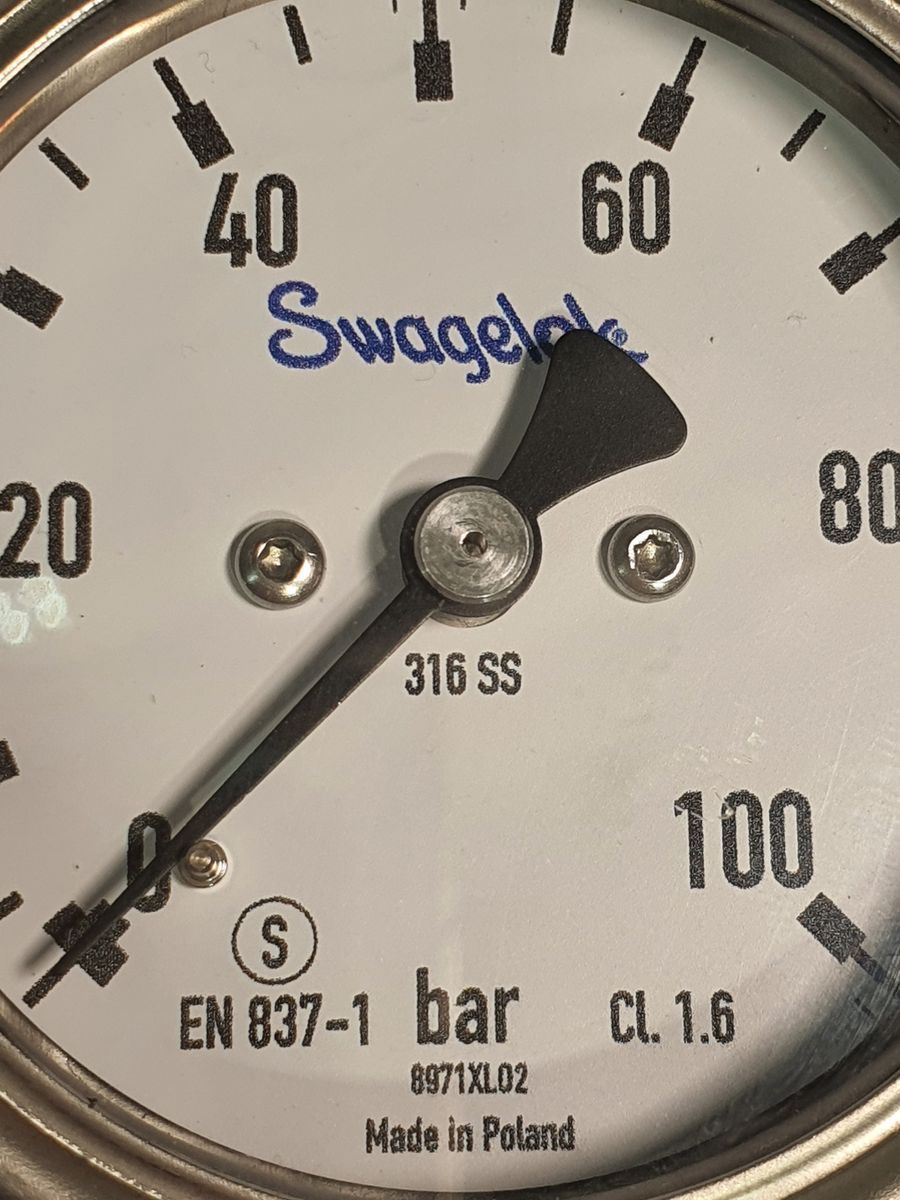

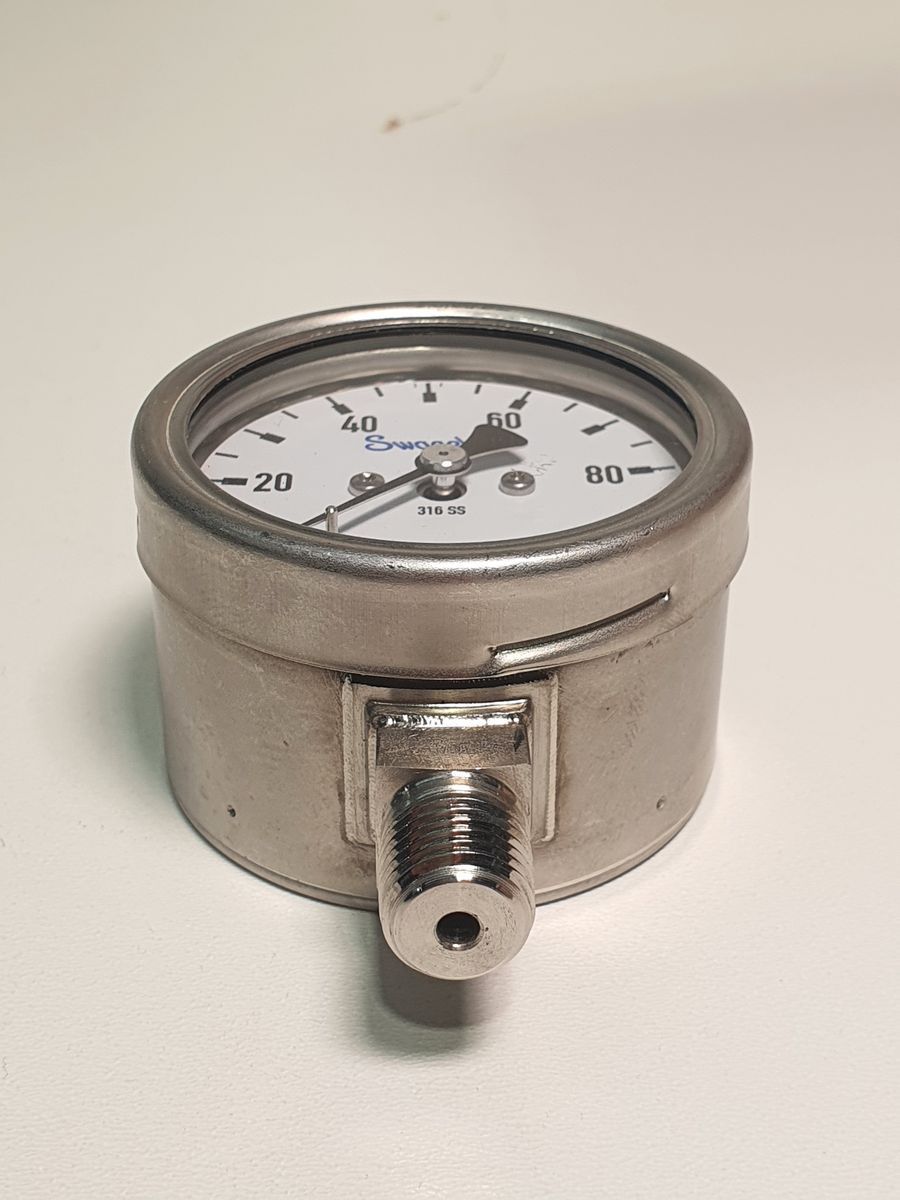

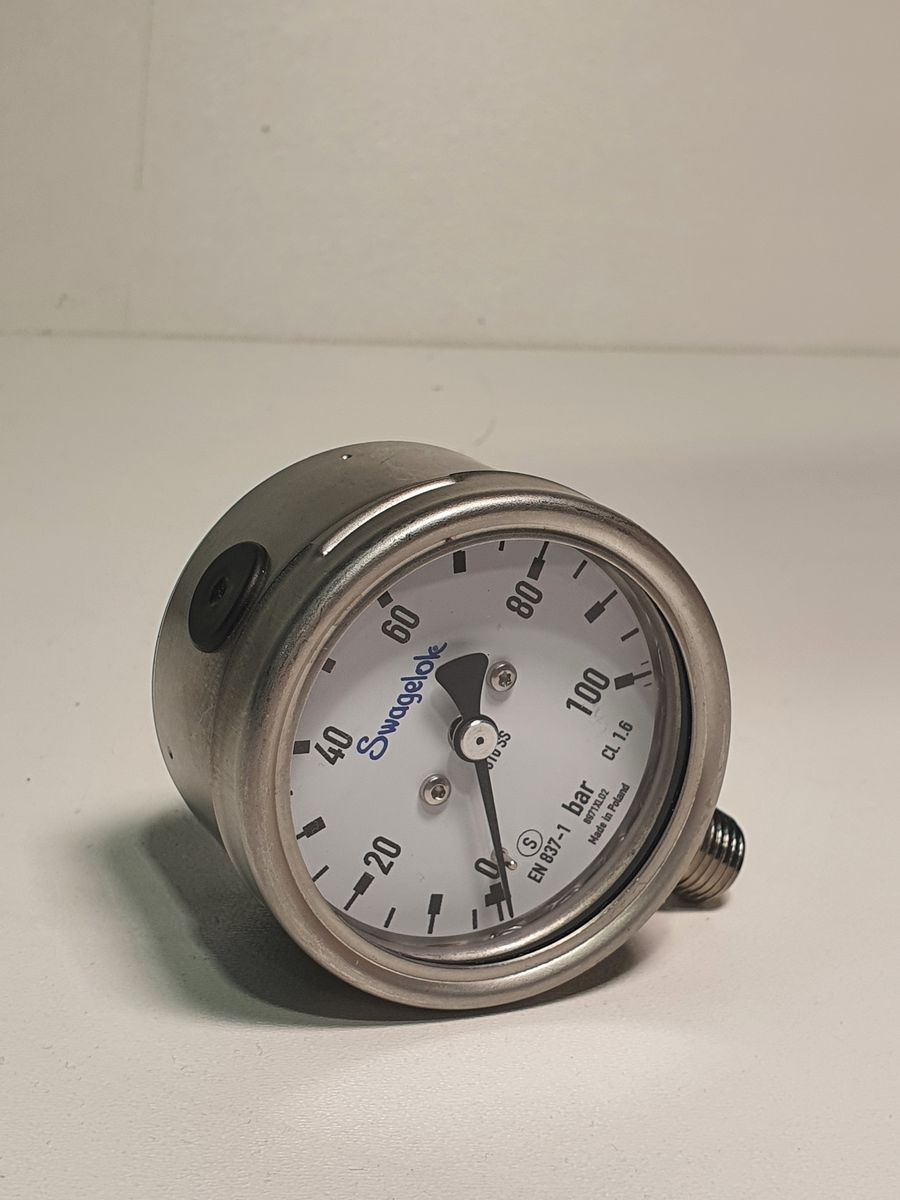

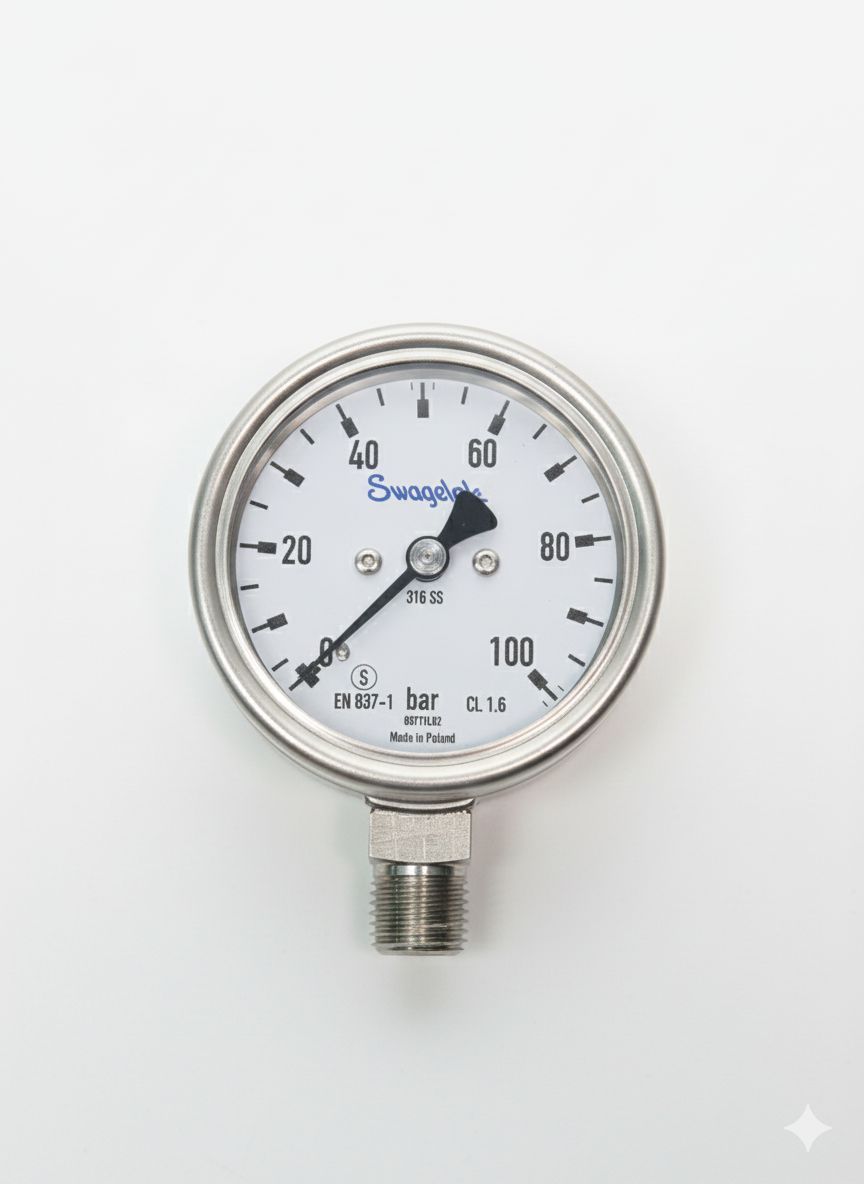

Swagelok PGI Industrial Pressure Gauge 0-100 bar 1/4 NPT Male 63mm

SKU: 6004

Raktáron

Használt

Áfát nem tartalmazza: €45,00 (1 elérhető)

Áfával együtt: €54,45

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanciális Időszakok Állapot Szerint

Új 12 hónapok

Felújított 3 hónapok

Használt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

The Swagelok PGI-63C-PG100-LA0X

Category	Parameter
Standard Compliance	EN 837-1 (EU mechanical pressure gauge standard)
Dial Size	63 mm (2.5 in)
Pressure Range	0–100 bar (1450 psi)
Case Material	Stainless steel
Wetted Materials	316 stainless steel
Window	Polycarbonate or tempered glass (variant-dependent)
Internals	Bourdon tube mechanism for stable, repeatable measurement
Accuracy	±1.6% of full scale (PGI 63 mm standard)
Temperature Range	Typically −20 °C to +60 °C (varies by fill/configuration)
Vibration Resistance	Optional liquid-filled case for enhanced stability (dry gauge usually LA0X code)
Process Connection	1/4" NPT (common on 63 mm PGI gauges)
Mounting	Lower mount (code “C” = center back or bottom connection depending on variant)
