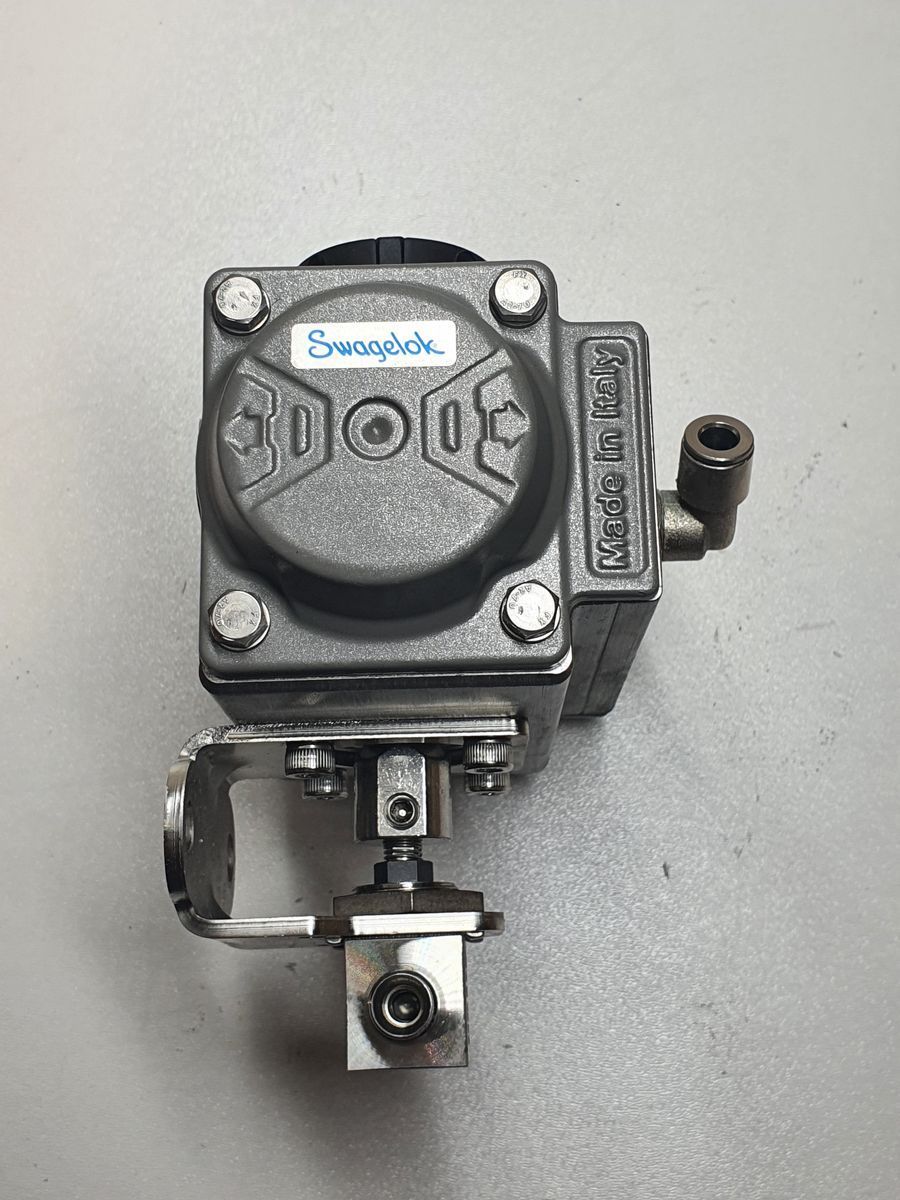

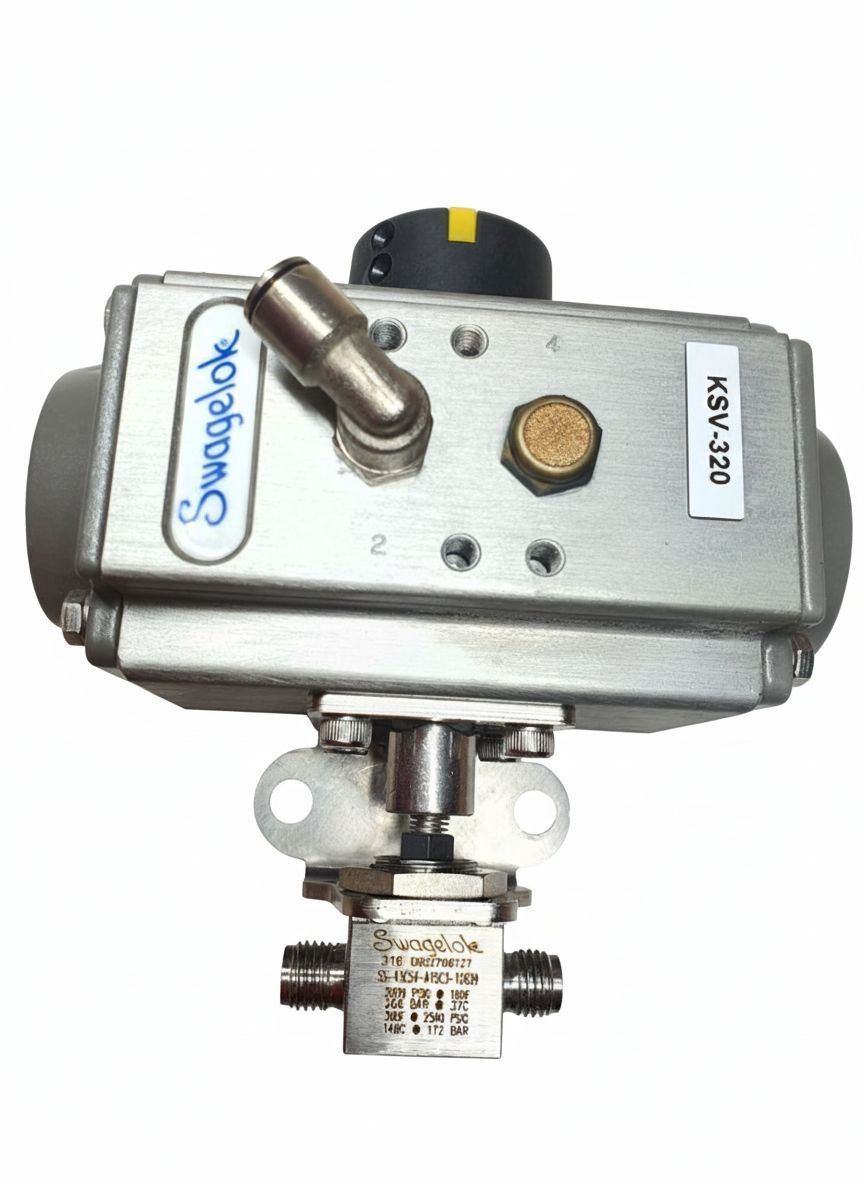

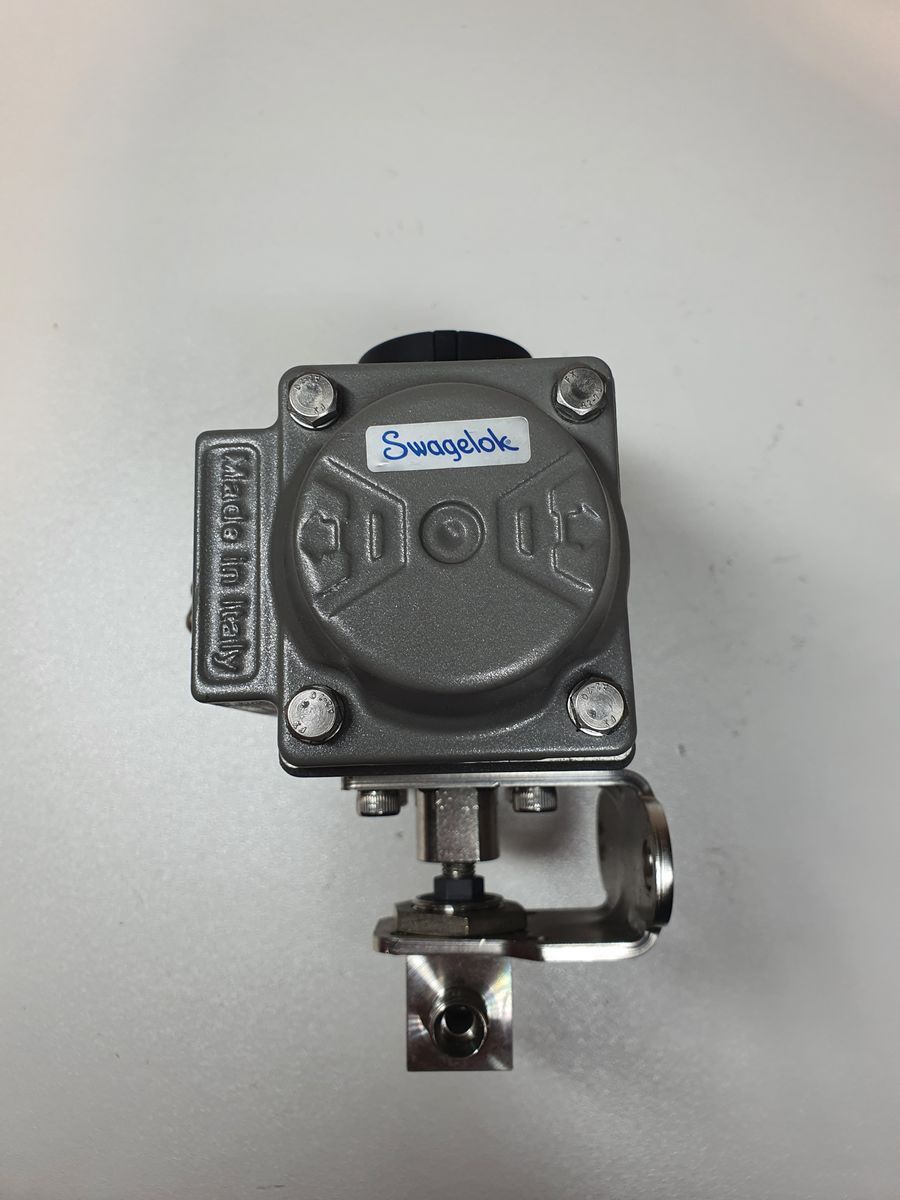

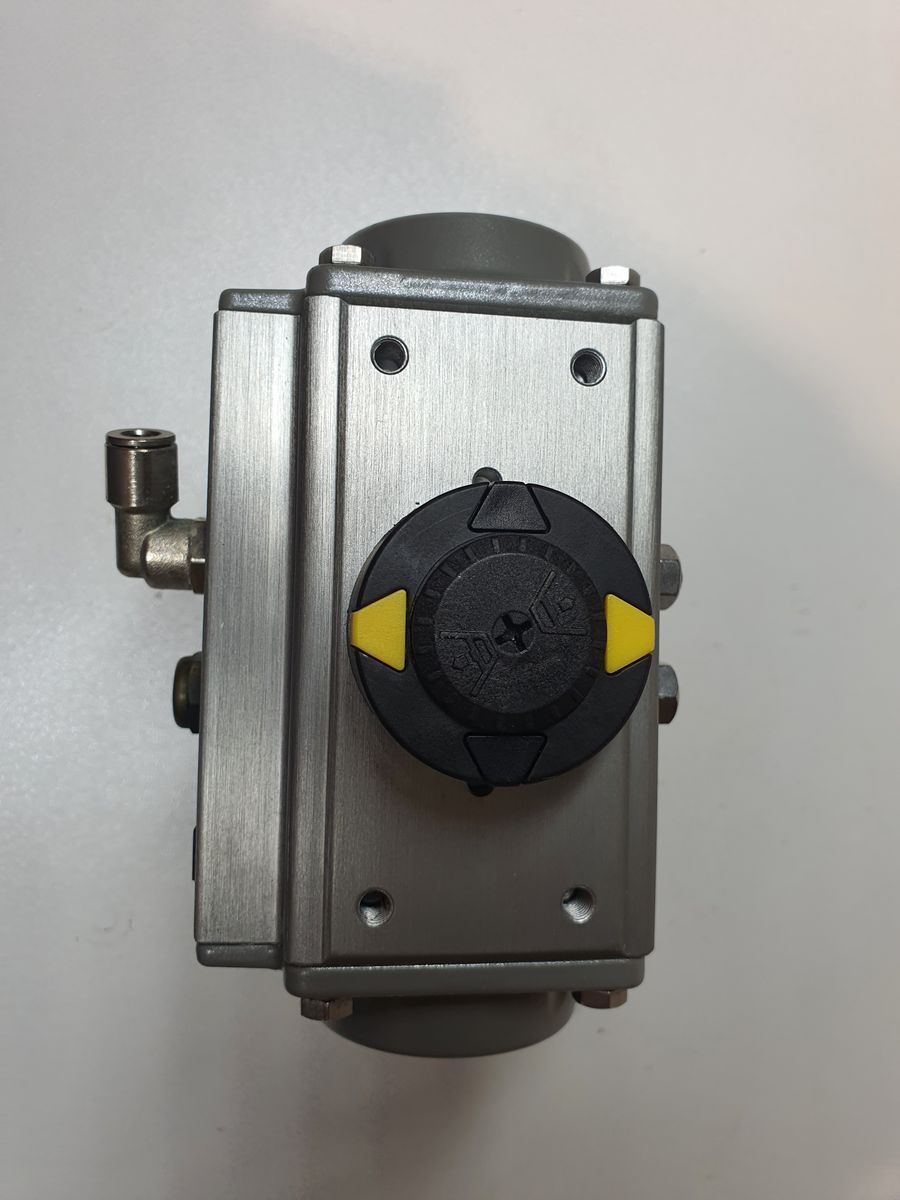

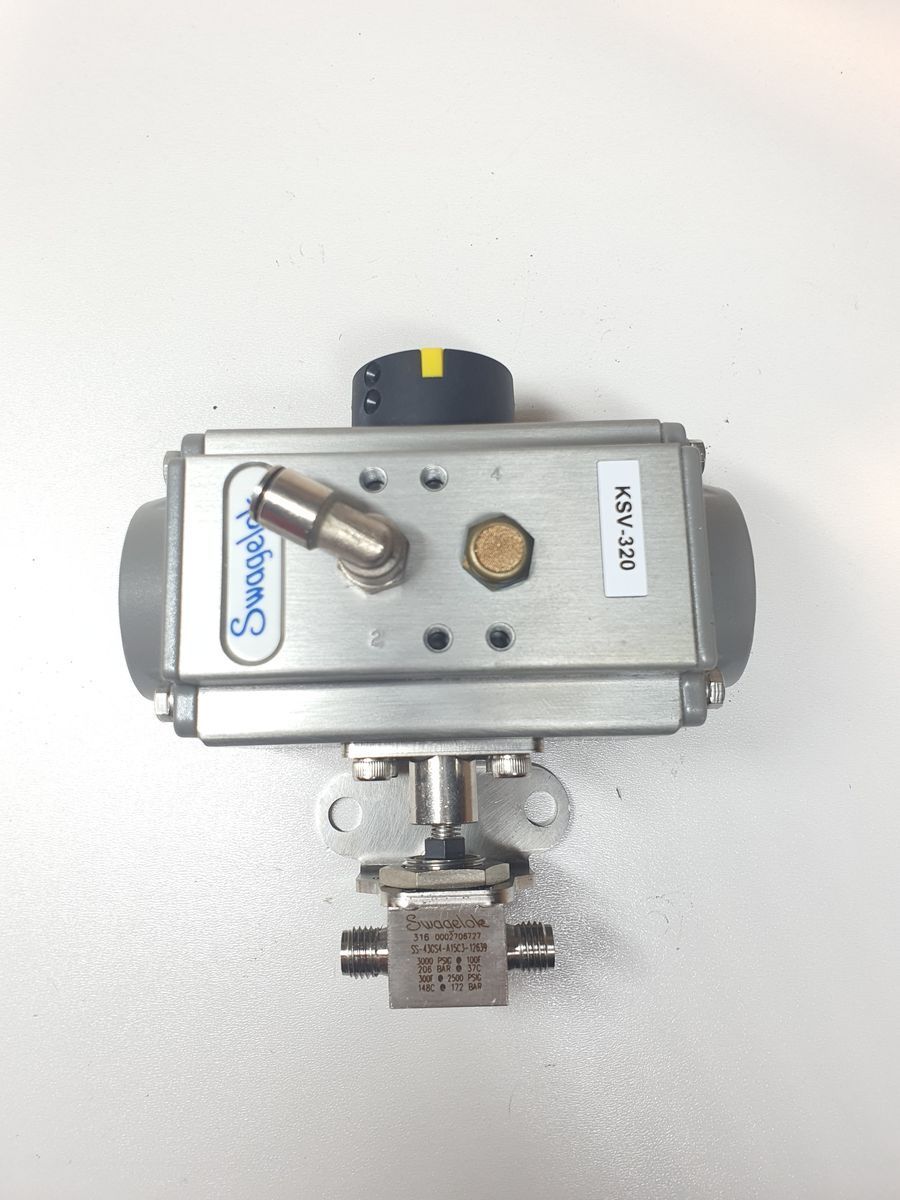

Swagelok A15-serie Pneumatische Ventielactuator

SKU: 4003

Készleten nincs

Ár kérésre

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

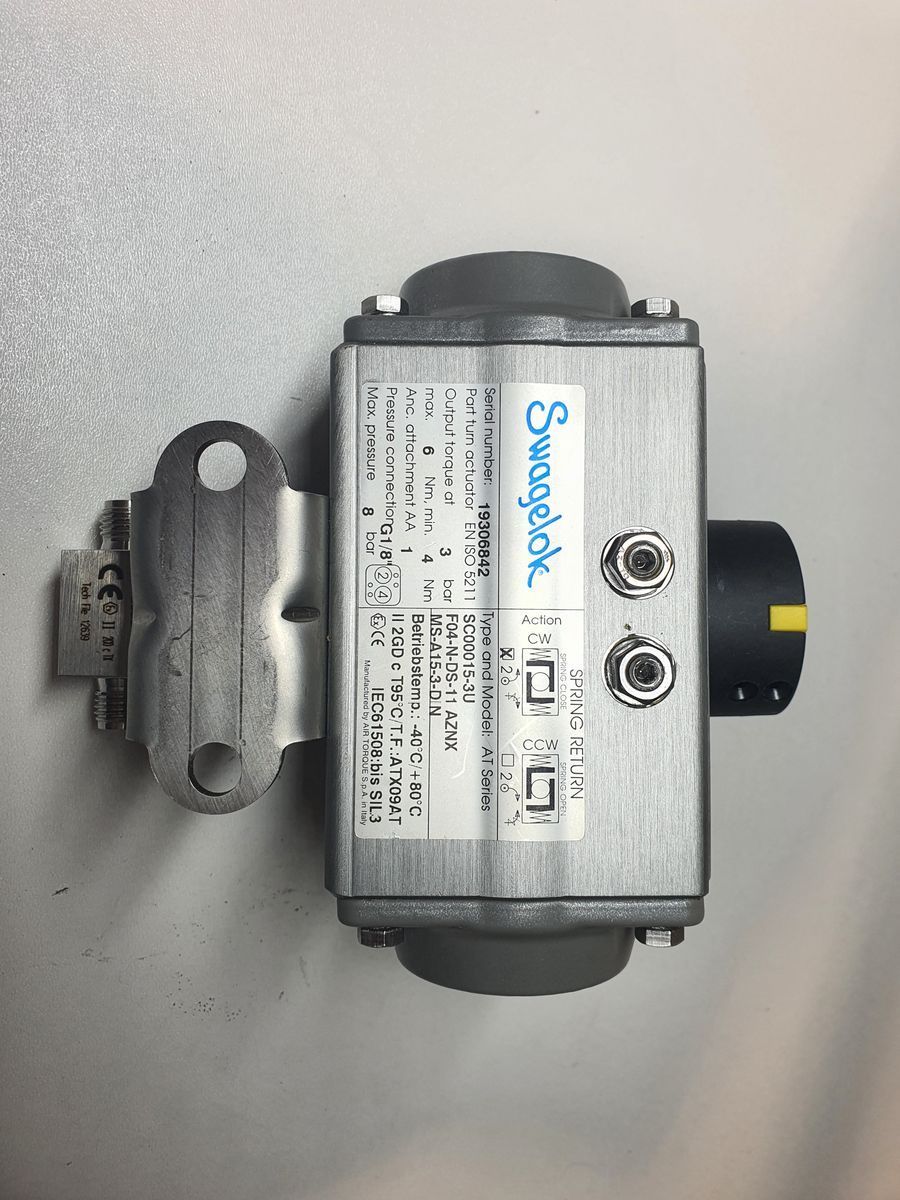

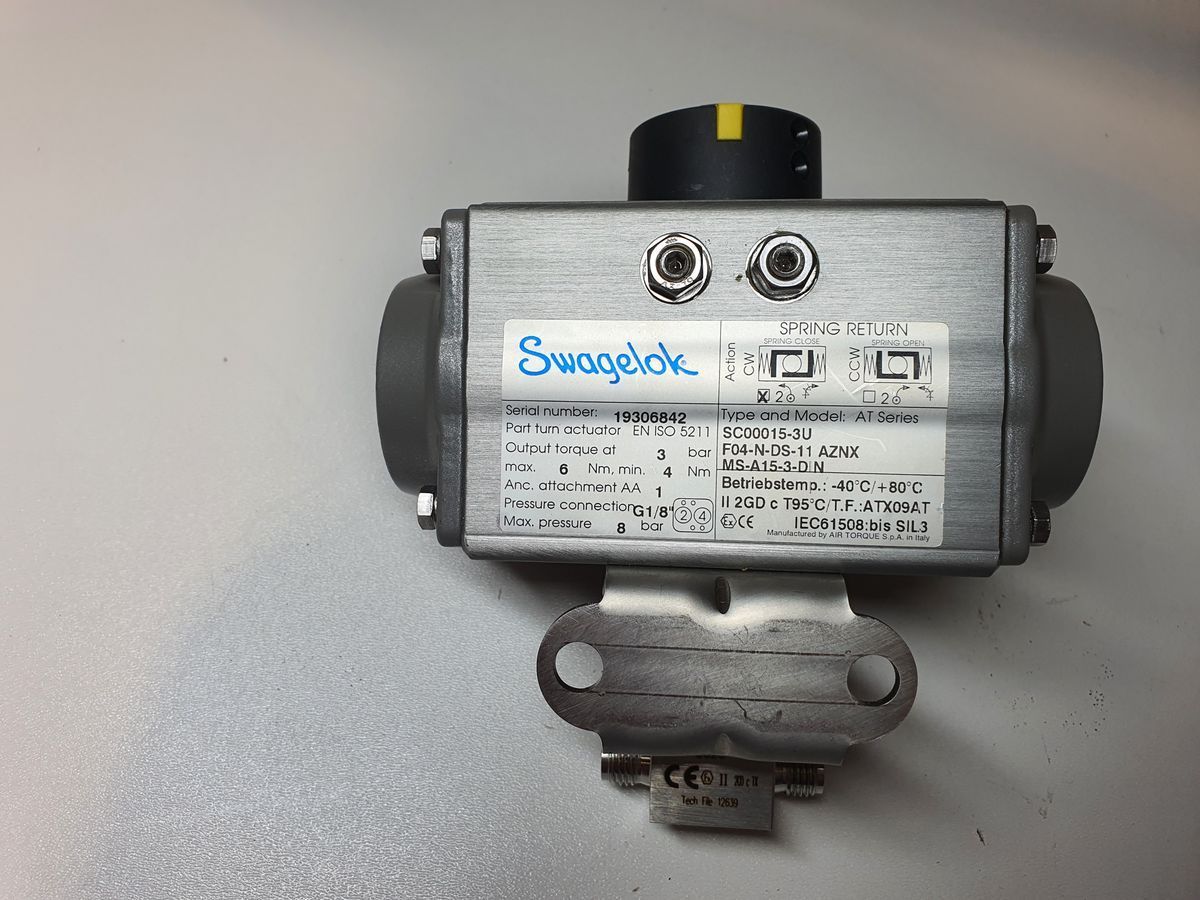

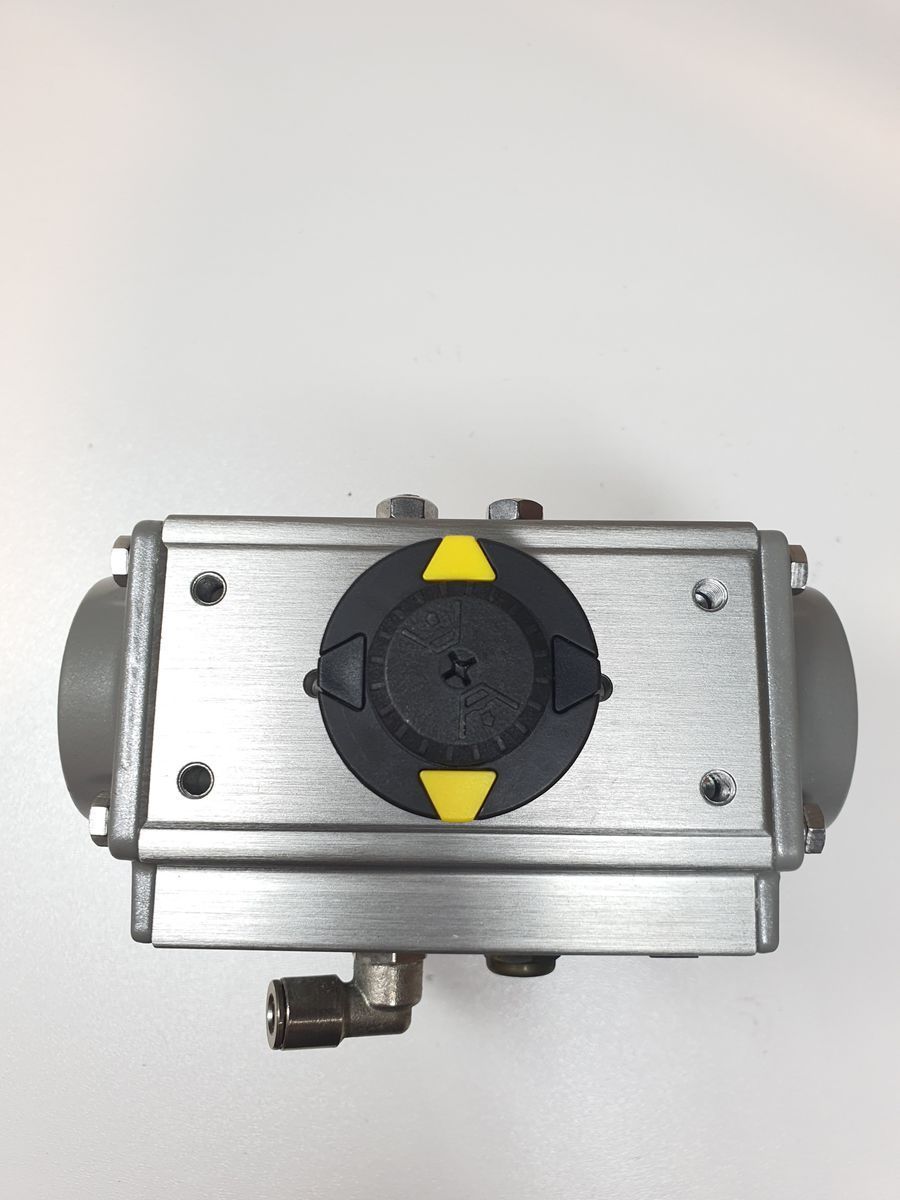

Swagelok SC00015-3U Pneumatische Actuator

Category	Parameter
Manufacturer	Air Torque S.p.A. (Italy)
Brand / Series	Swagelok AT-Series
Type	Pneumatic quarter-turn actuator
Operation	Spring return (spring close / spring open)
Rotation Angle	90° (quarter-turn)
Output Torque	Minimum: 4 NmMaximum: 6 Nm
Maximum Operating Pressure	8 bar
Air Connection	G 1/8"
Mounting Standard	EN ISO 5211
Ambient Temperature Range	−40 °C to +80 °C
ATEX Classification	II 2GD c T95°C / T.F. ATX09 AT
Safety Integrity Level	IEC 61508 – SIL 3

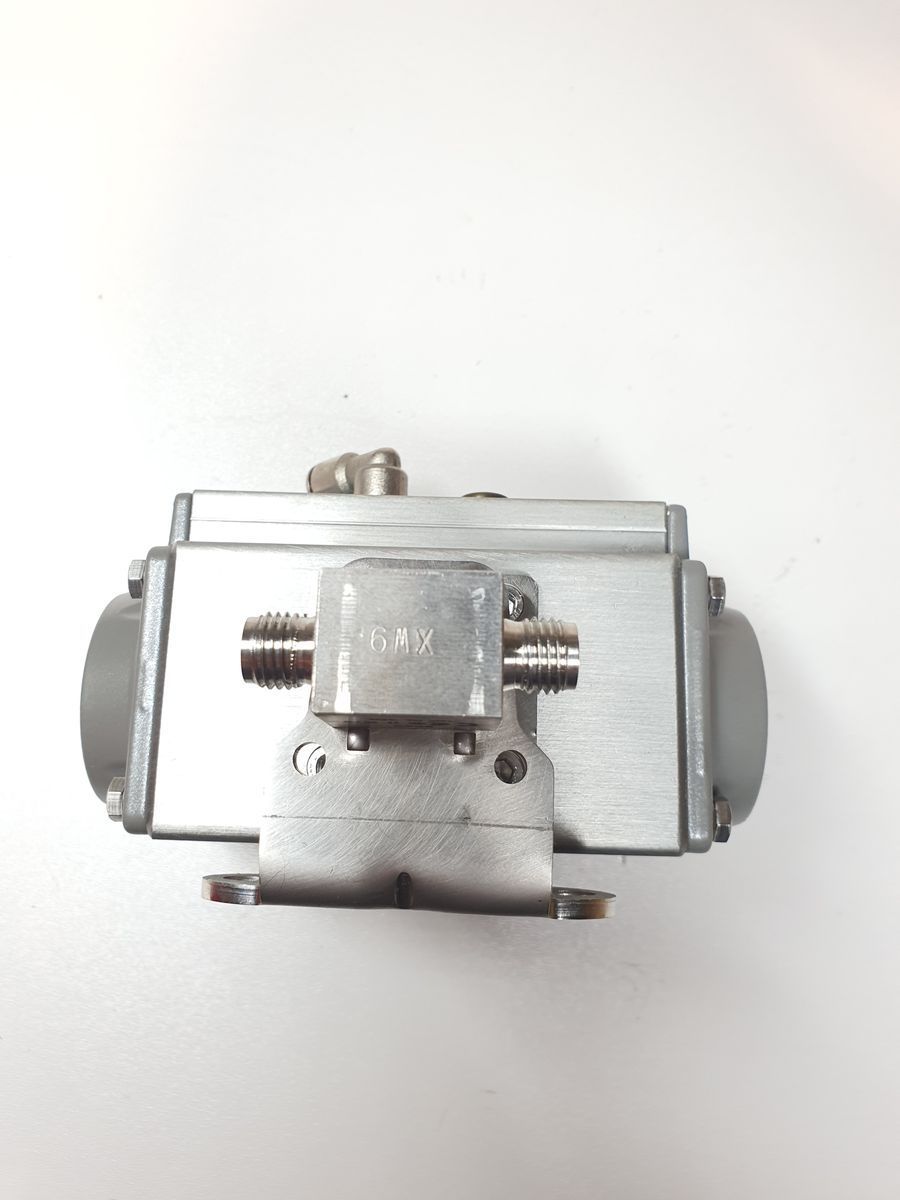

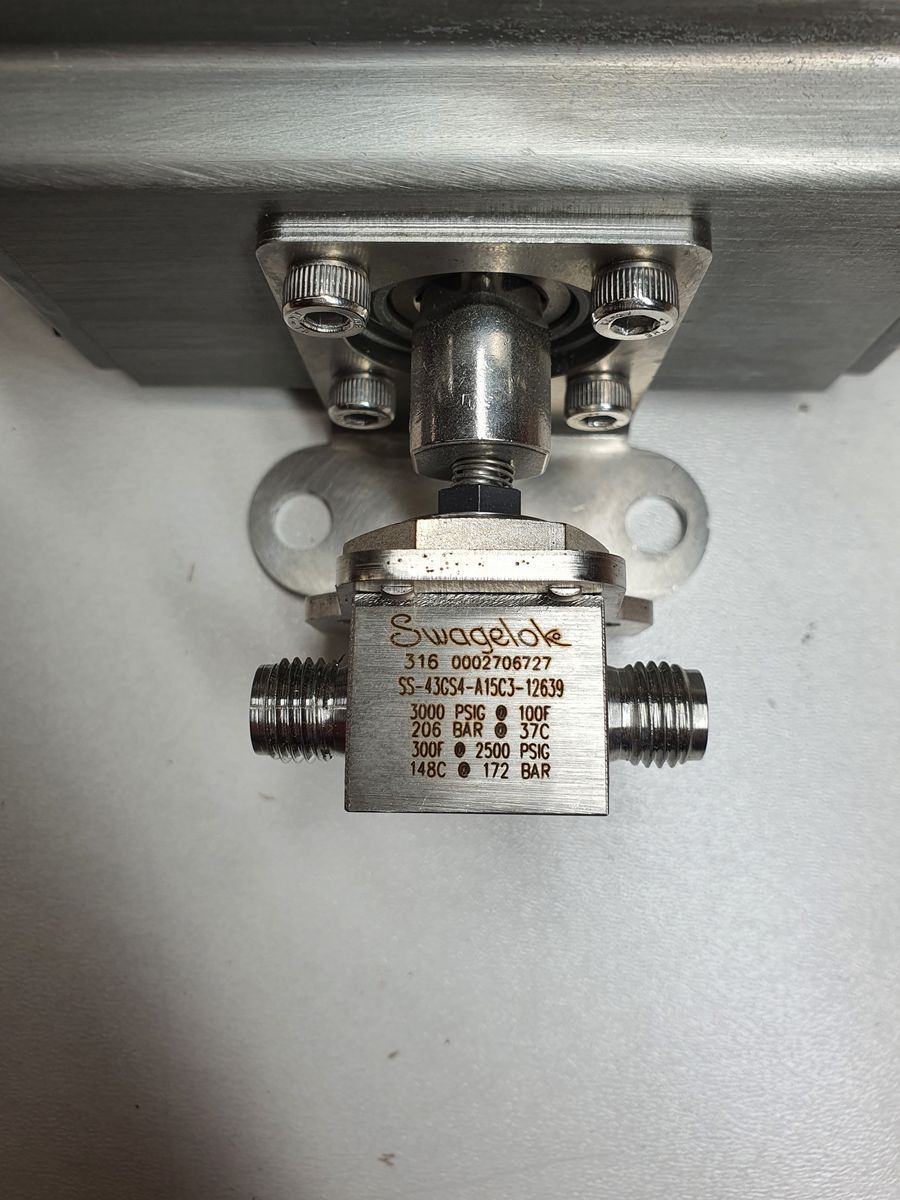

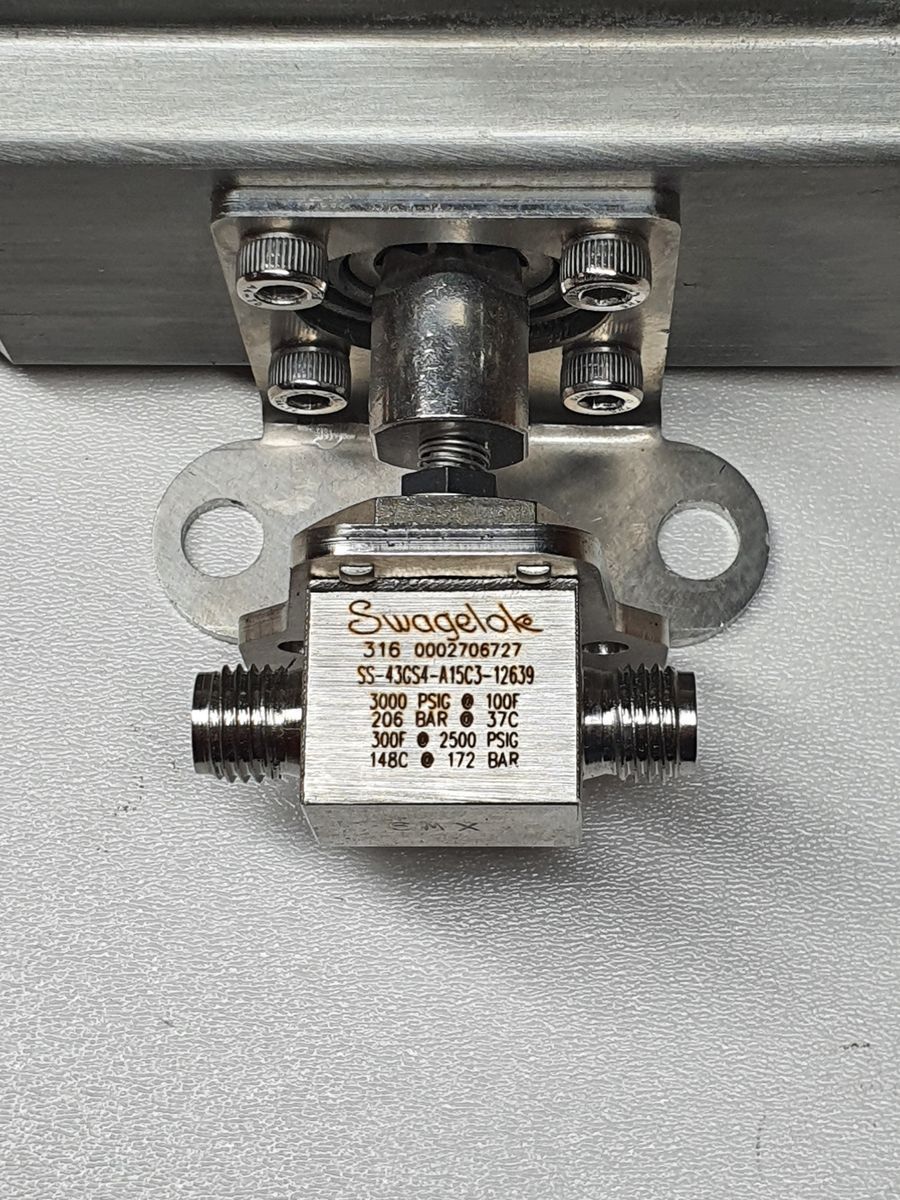

Swagelok MS-A15-3-DIN-klep:

Parameter	Specification
Model / Part Number	SS-43GS4-A15C3-12639
Serial Number	0002706727
Material	316 Stainless Steel
Pressure Rating	3000 PSIG @ 100 °F (206 bar @ 37 °C) 2500 PSIG @ 300 °F (172 bar @ 148 °C)
Connections	Threaded inlet/outlet (visible)
