Pneumatikus Aktuátorok

Parker 32-2110A-0100

SKU: 4040

Raktáron

Válassza ki a feltételt

Used

Áfát nem tartalmazza: €45,00 (1 elérhető)

Áfával együtt: €54,45

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Garancia Információk

Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanciális Időszakok Állapot Szerint

Új 12 hónapok

Felújított DOA

Használt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Leírás

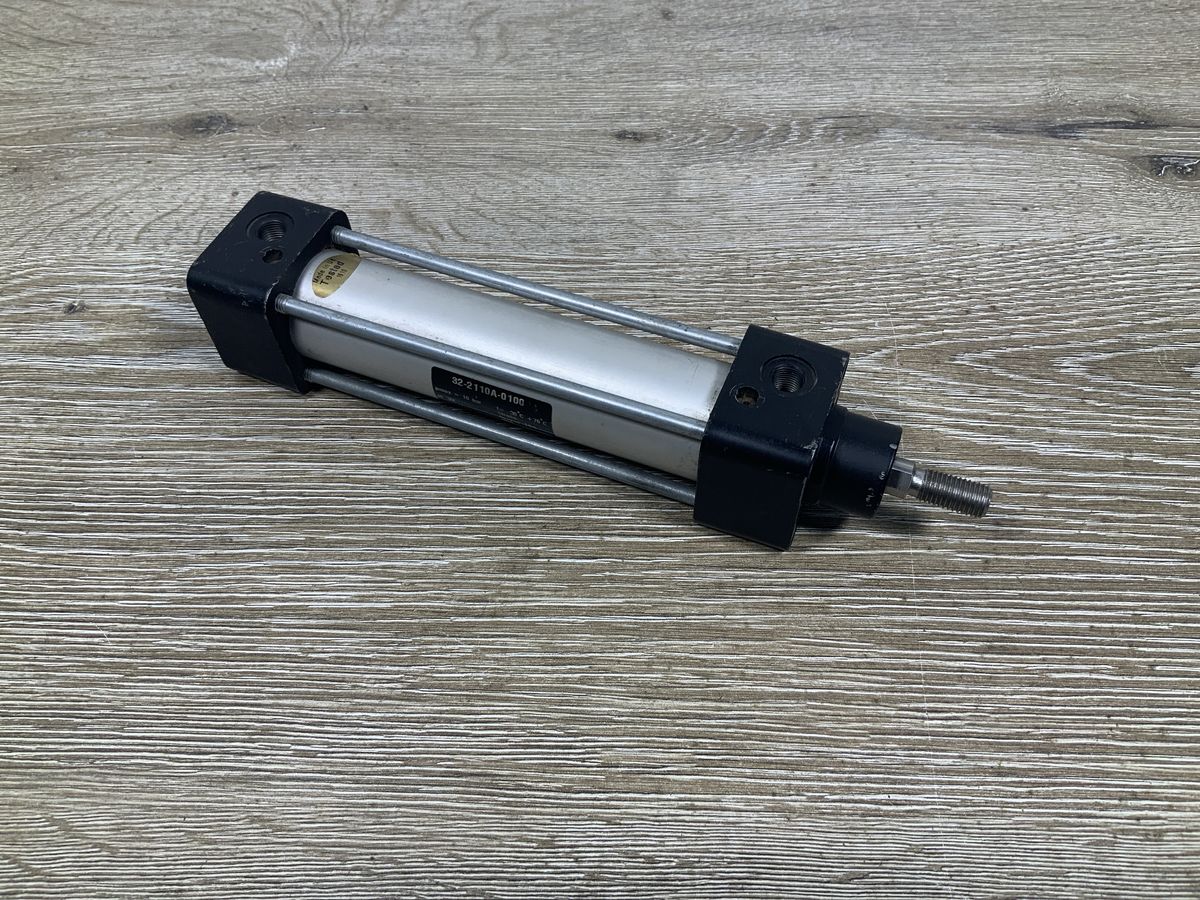

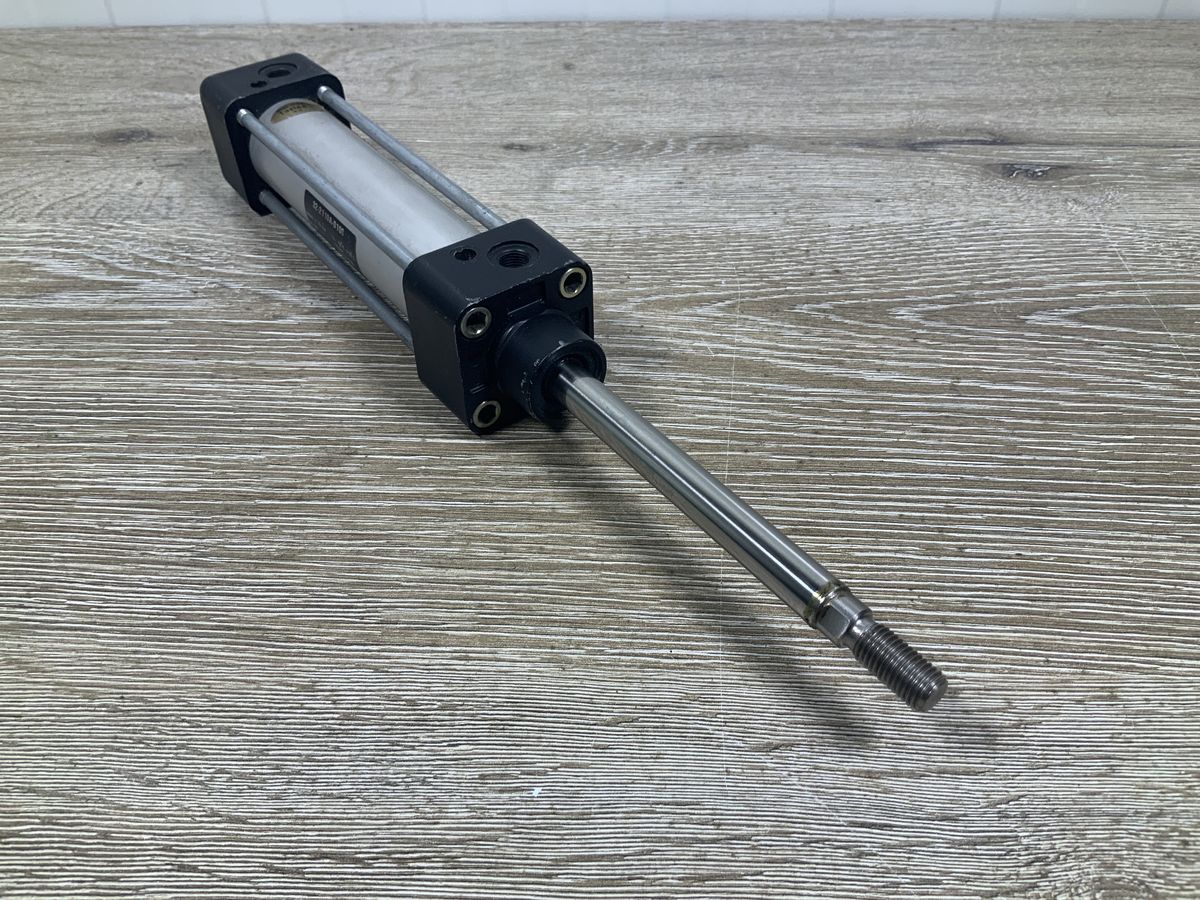

The Schrader Bellows 32-2110A-0100 is an ISO 6431 tie-rod pneumatic cylinder designed for industrial linear motion applications. It features a 32 mm bore diameter and a 100 mm stroke length with adjustable end-position cushioning. Rated for working pressures up to 10 bar across an operating temperature range of -30°C to +70°C.

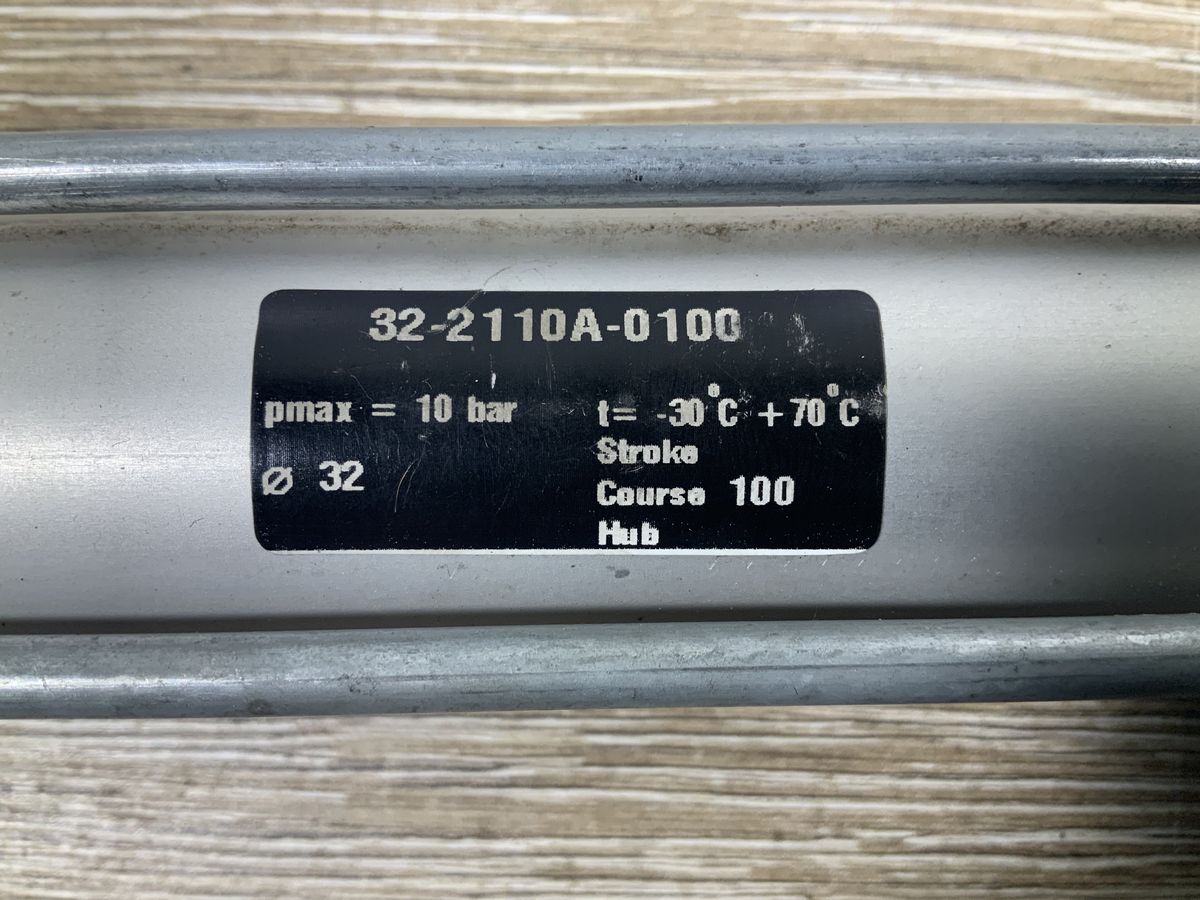

Specifications – 32-2110A-0100

Parameter	Specification
Bore Diameter	32 mm
Stroke Length	100 mm
Maximum Operating Pressure	10 bar
Operating Temperature Range	-30 °C to +70 °C

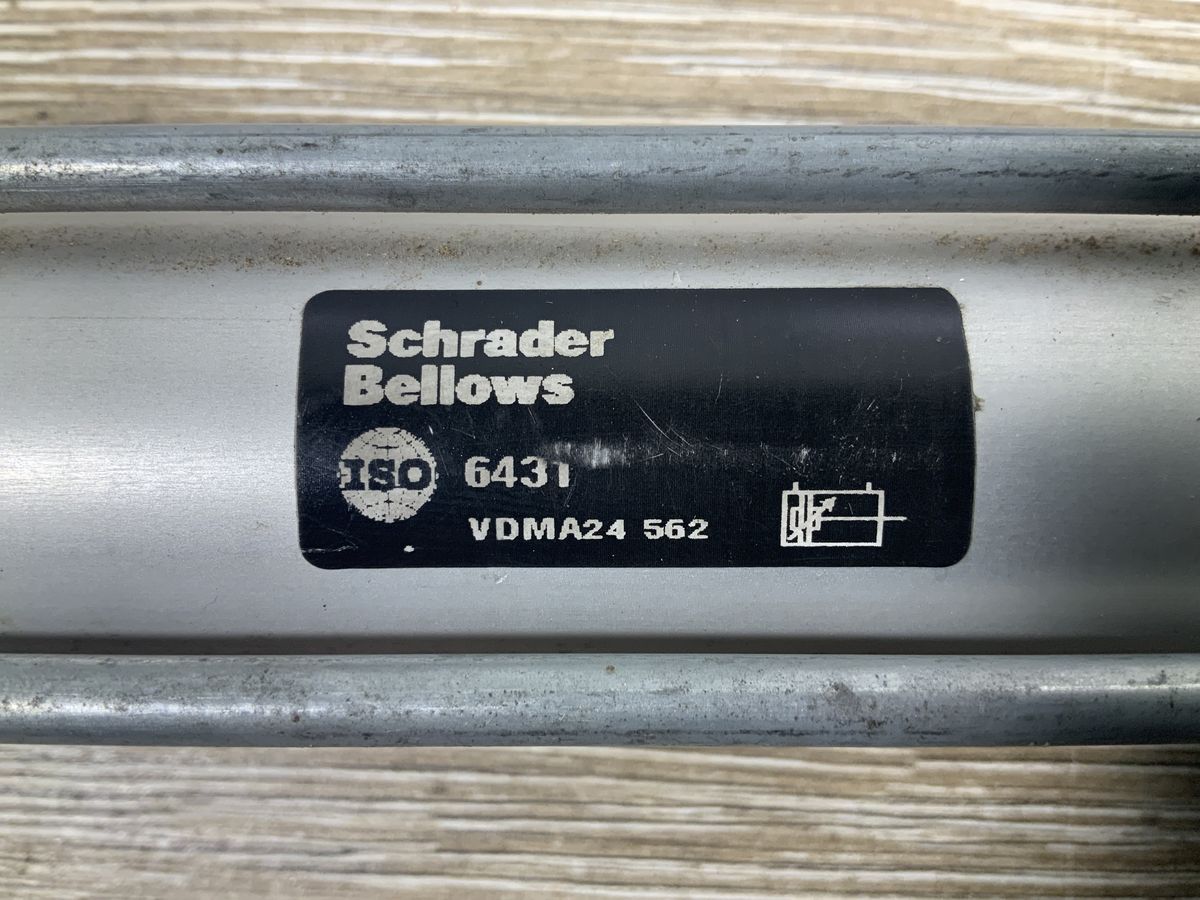

Standards	ISO 6431 / VDMA 24562
