Nyomásmérő
Observator Rotterdam Pressure Gauge 0-250 bar 1/4 NPT Male 67mm
SKU: 6028
Raktáron
Garancia Információk
Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

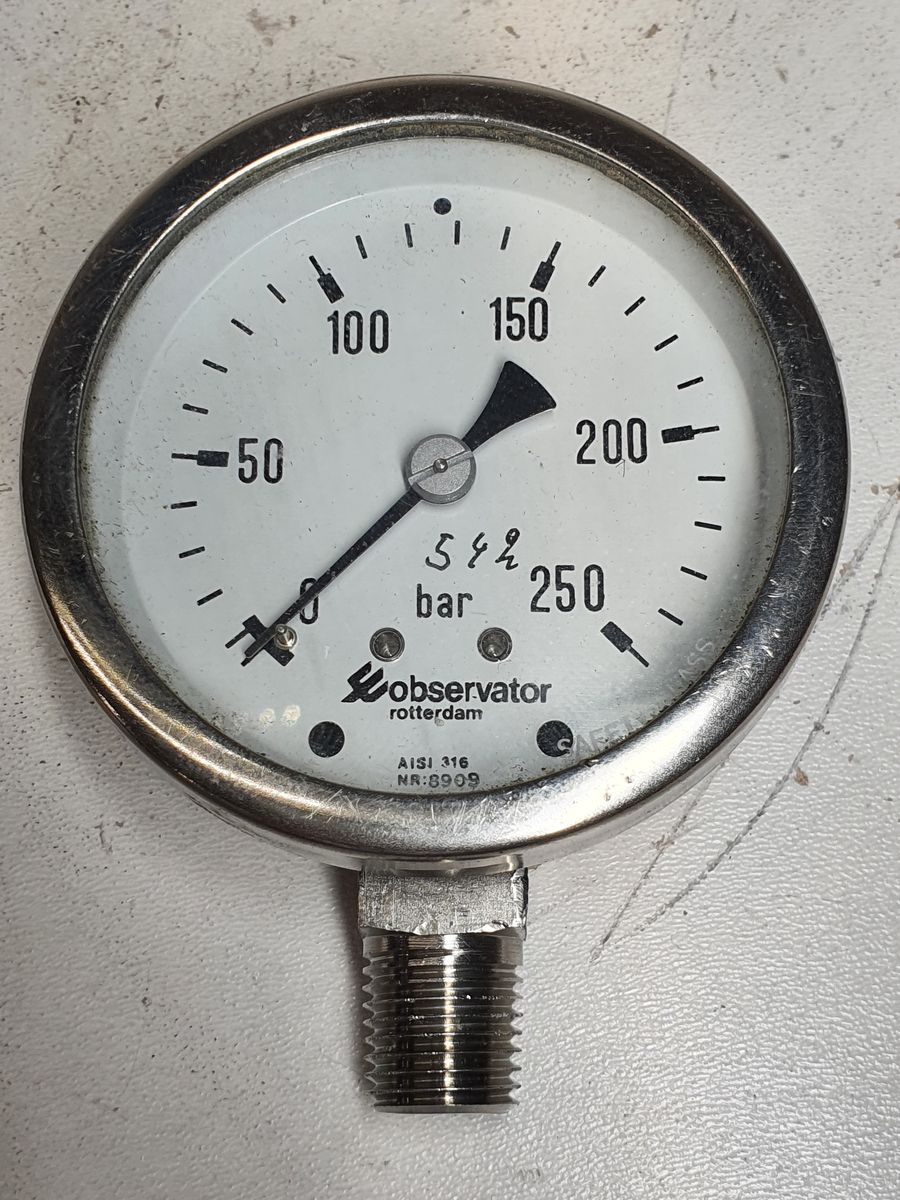

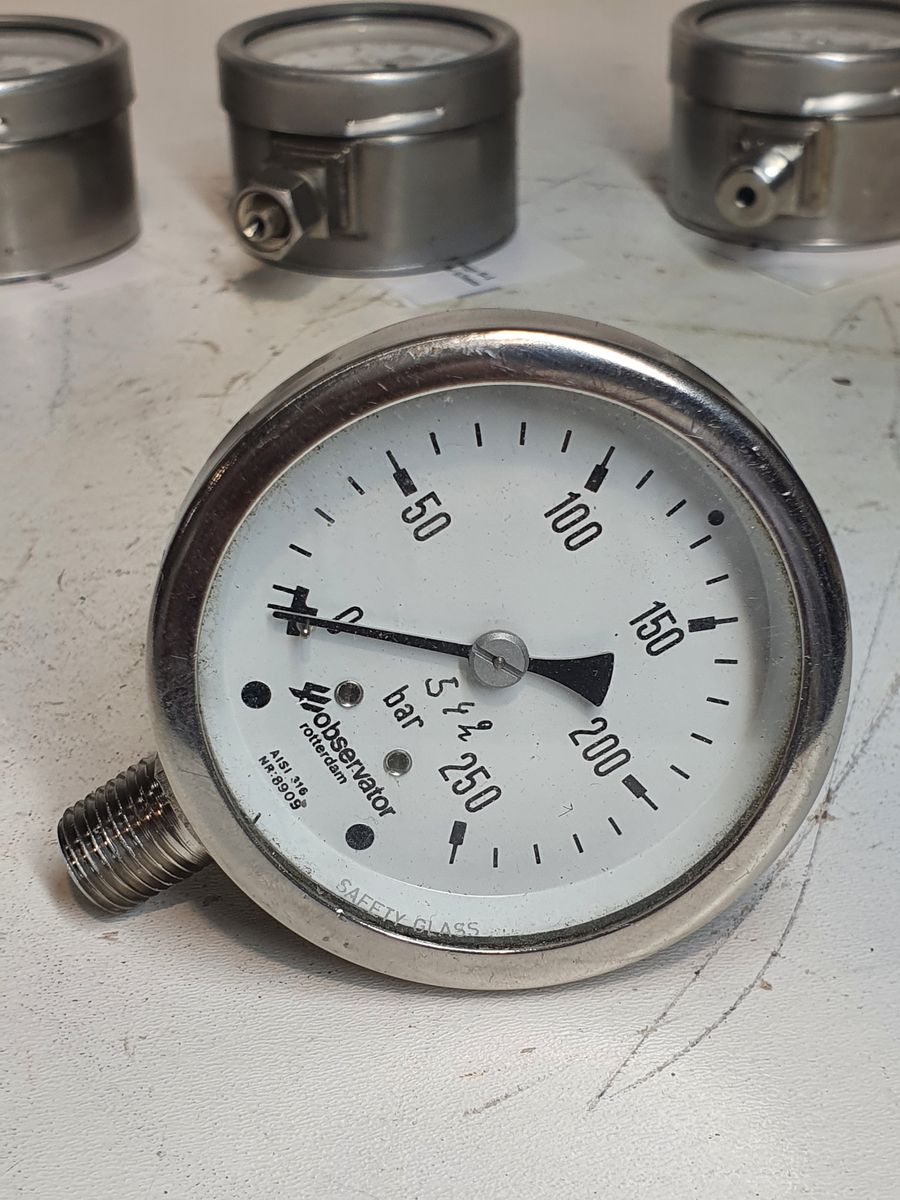

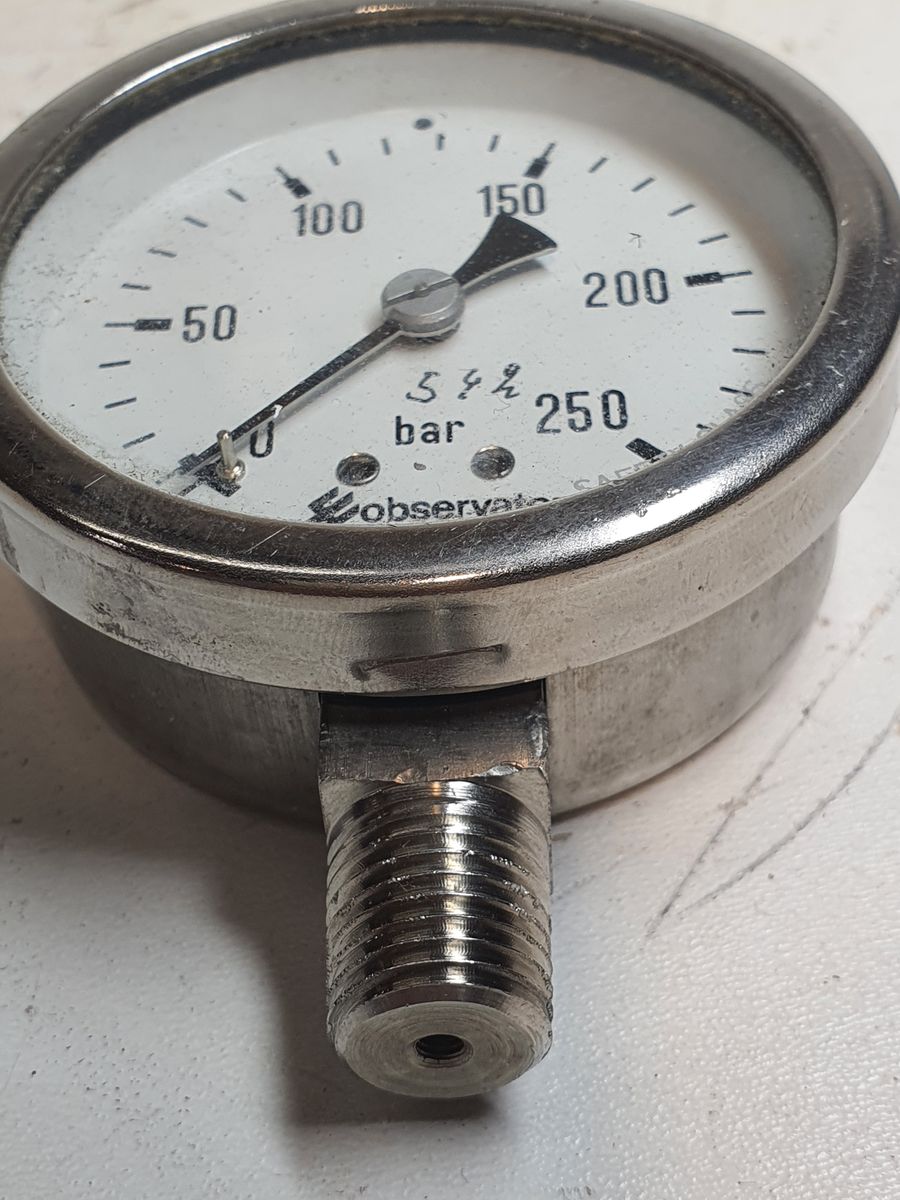

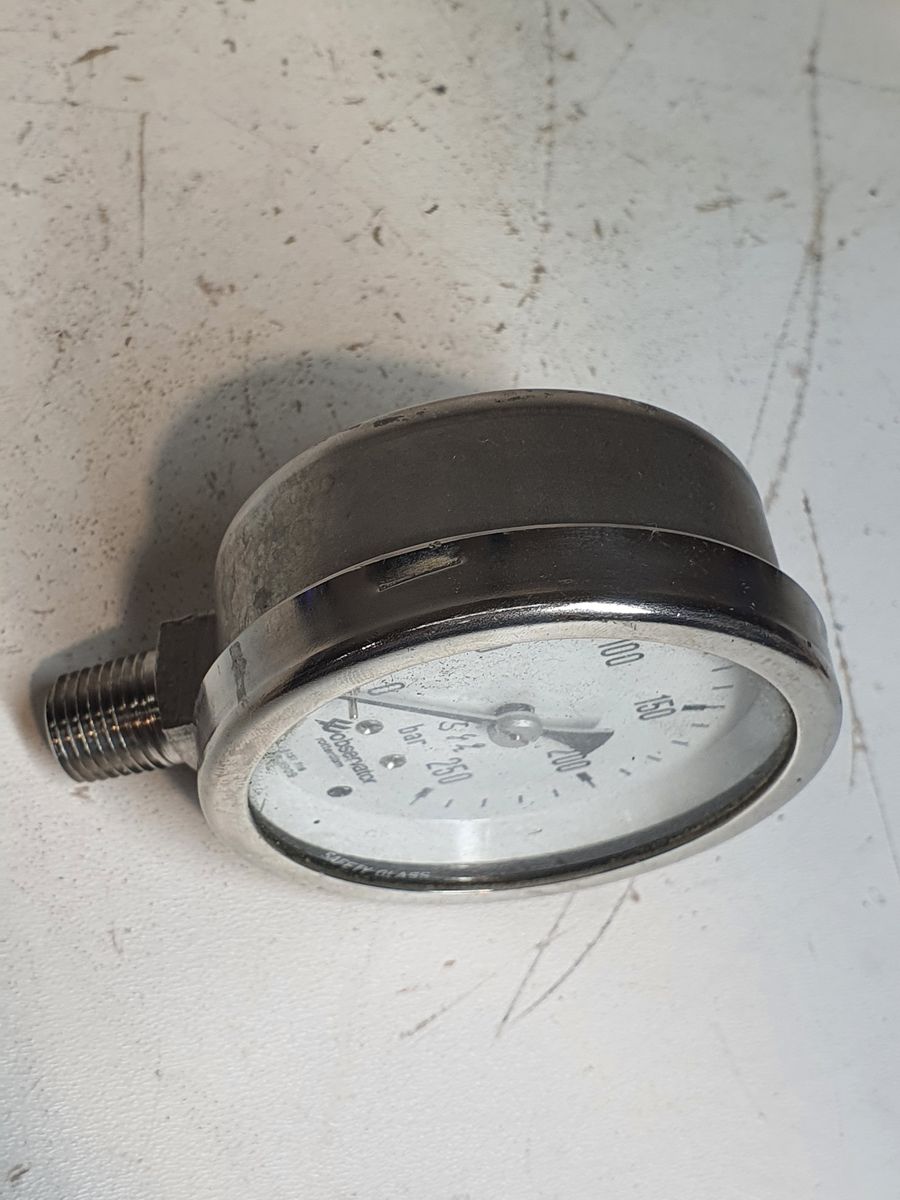

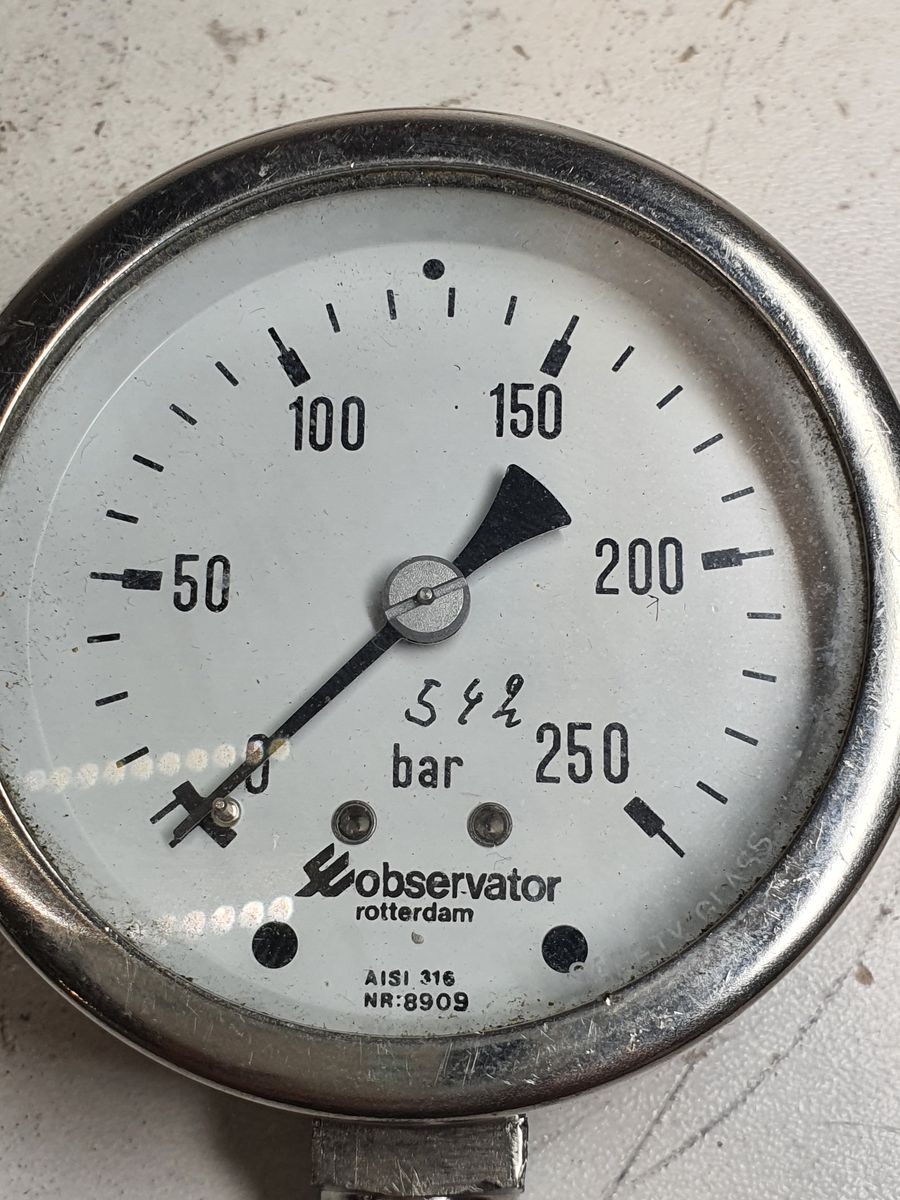

Observator Rotterdam Pressure Gauge 0-250 bar 1/4 NPT Male 67mm
| Parameter | Specification |
|---|---|
| Manufacturer | Observator |
| Instrument Type | Pressure Gauge |
| Scale | Single scale |
| Pressure Range | 0 – 250 bar |
| Size | 67mm |
| Measuring Element | Bourdon tube |
| Wetted Parts Material | AISI 316 stainless steel |
| Socket Material | AISI 316 stainless steel |
| Case Material | Stainless steel |
| Dial Color | White |
| Pointer | Black |
| Connection Type | Bottom (radial) |
| Connection Thread | Likely 1/4 NPT |
| Mounting | Direct mounting |
| Safety Design | Standard industrial gauge |
×
![]()
