Pneumatikus Aktuátorok

Hoke 0722A4/ 7142G2Y

SKU: 4023

Raktáron

Használt
Munkakörnyezetből származik

Ár kérésre

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanciális Időszakok Állapot Szerint

Új 12 hónapok

Felújított DOA

Használt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

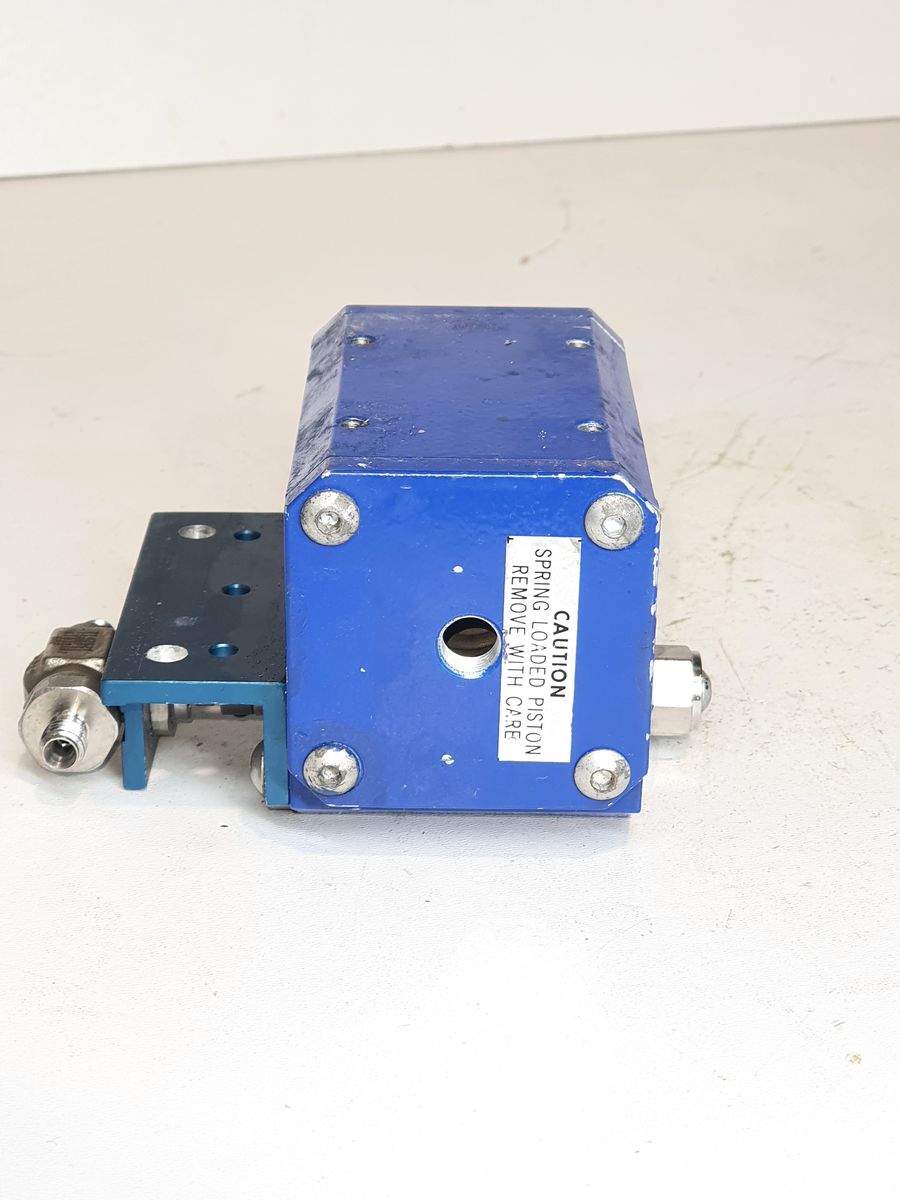

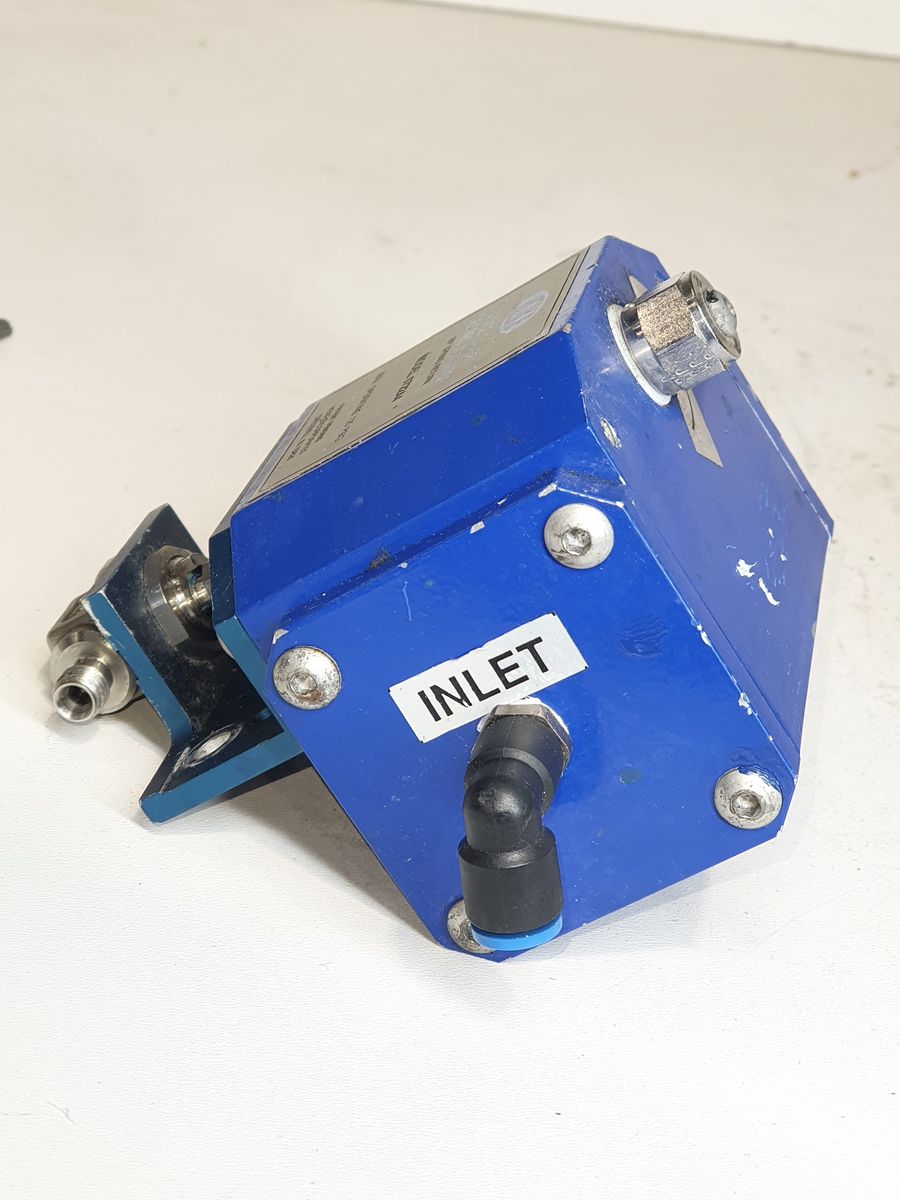

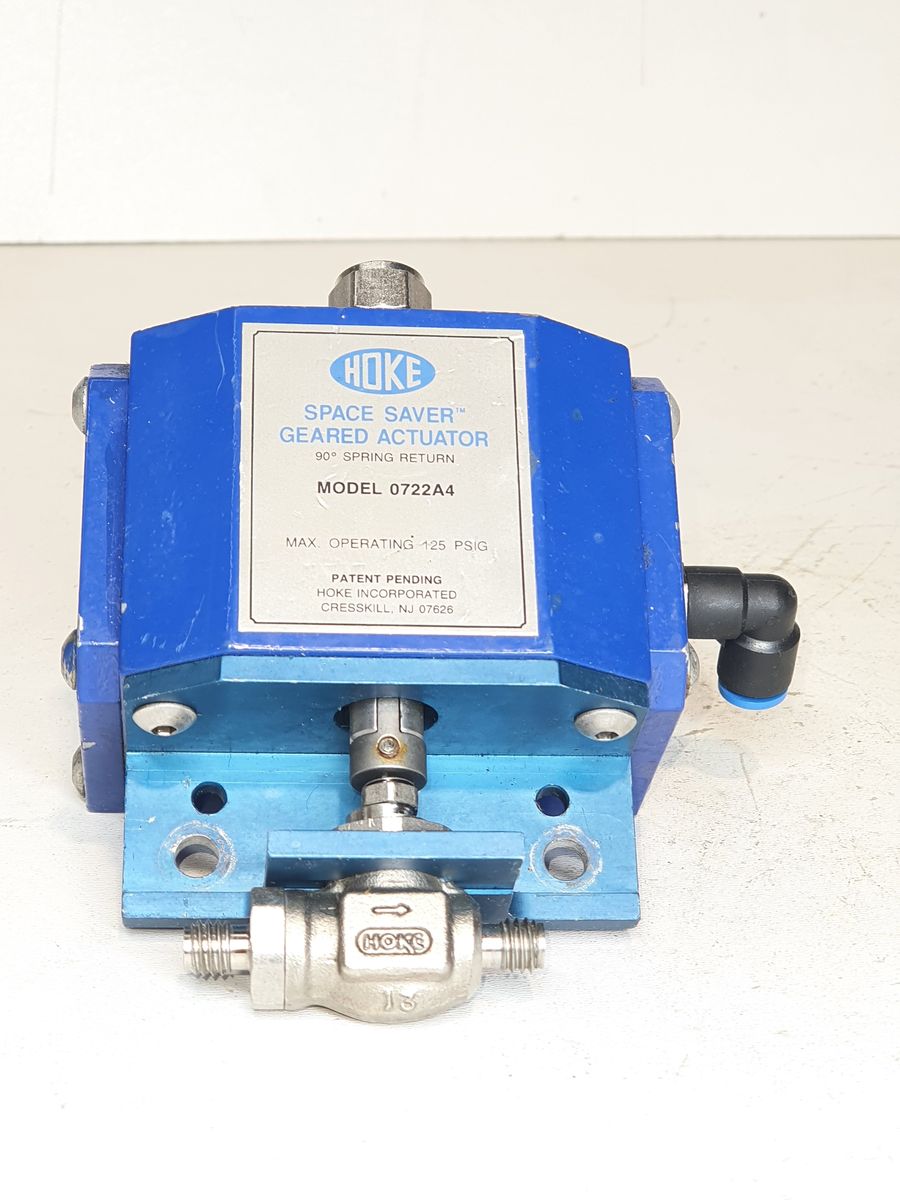

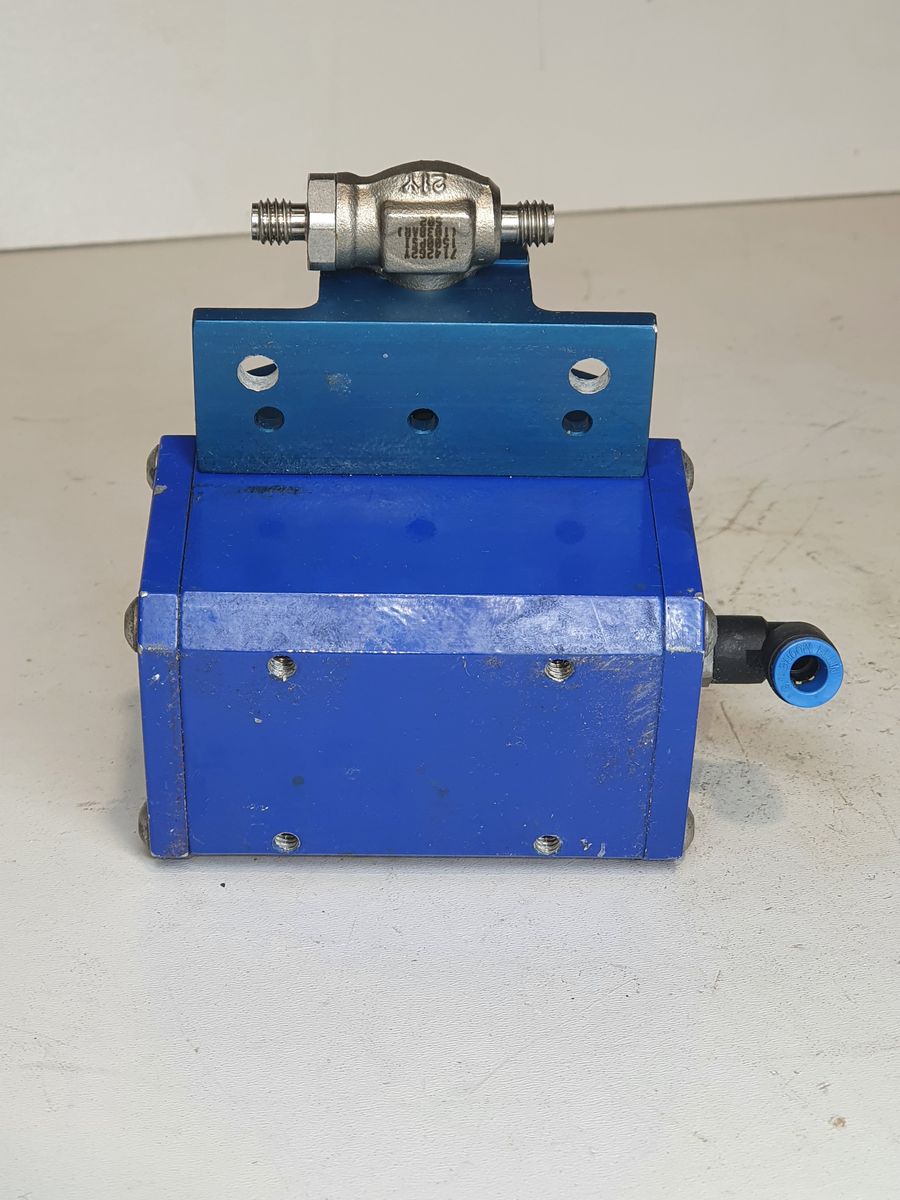

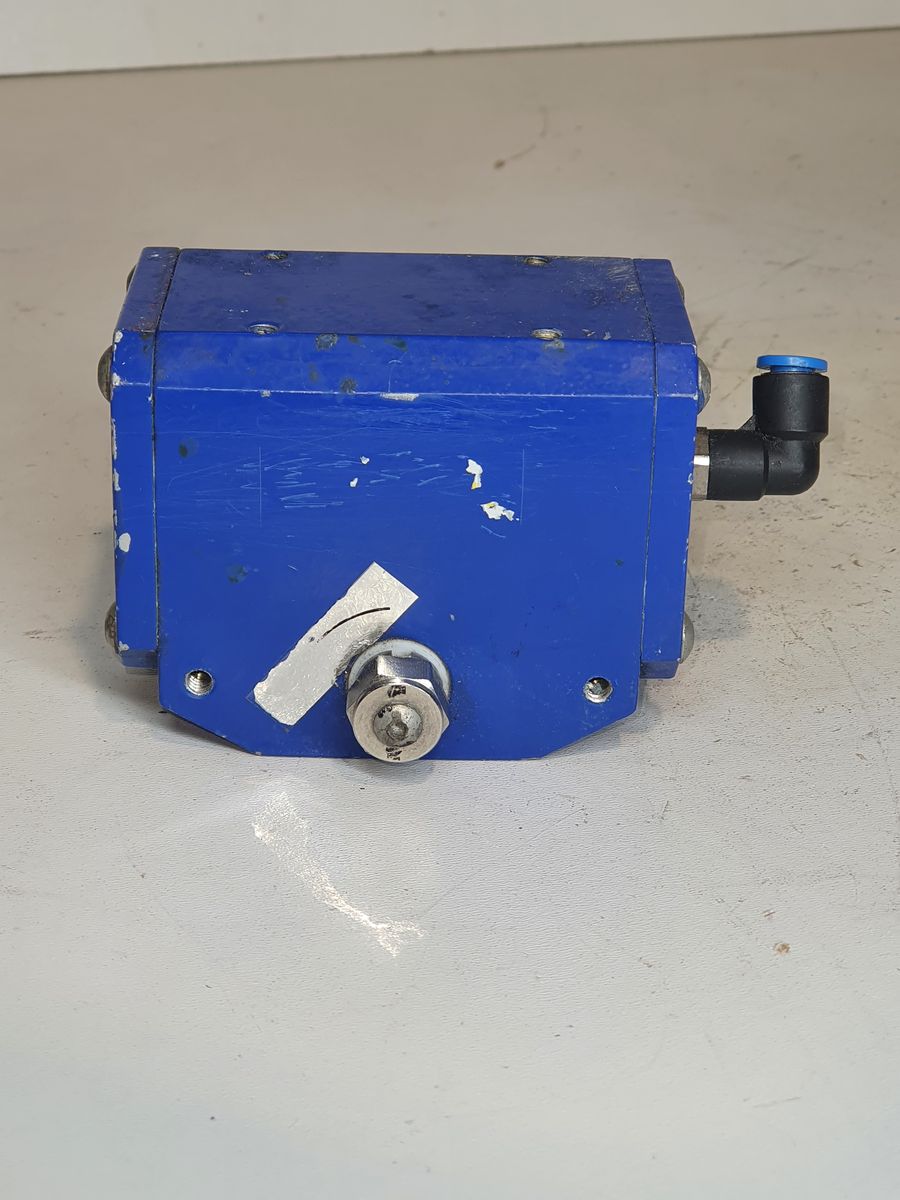

Hoke 0722A4

Item	Specification
Actuator Type	90° Spring Return Pneumatic Actuator
Model Number	0722A4
Series	Space Saver™ 0700 Series
Housing Material	Polyurethane-coated aluminum
Geared Output Shaft	316 stainless steel
Internal Liner	Reinforced polyamide polymer
Seals	Nitrile (A4 designation)
Geared Piston Coating	Anodized aluminum with PTFE
Spring Material	Alloy steel with corrosion-resistant coating
Output Torque (90° Spring Return)	See torque table below
Minimum Inlet Pressure for 90° Rotation	60 psig (~4 bar)
Air Supply Connection	1/8″ Female NPT
Maximum Operating Pressure	125 psig (9 bar)
Operating Temperature Range	0 °F to 250 °F (-18 °C to 121 °C)
Cycle Time	~1 second (varies with supply and load)
Minimum Cycle Life	≥ 250,000 cycles
Weight	1.7 lb (0.75 kg)

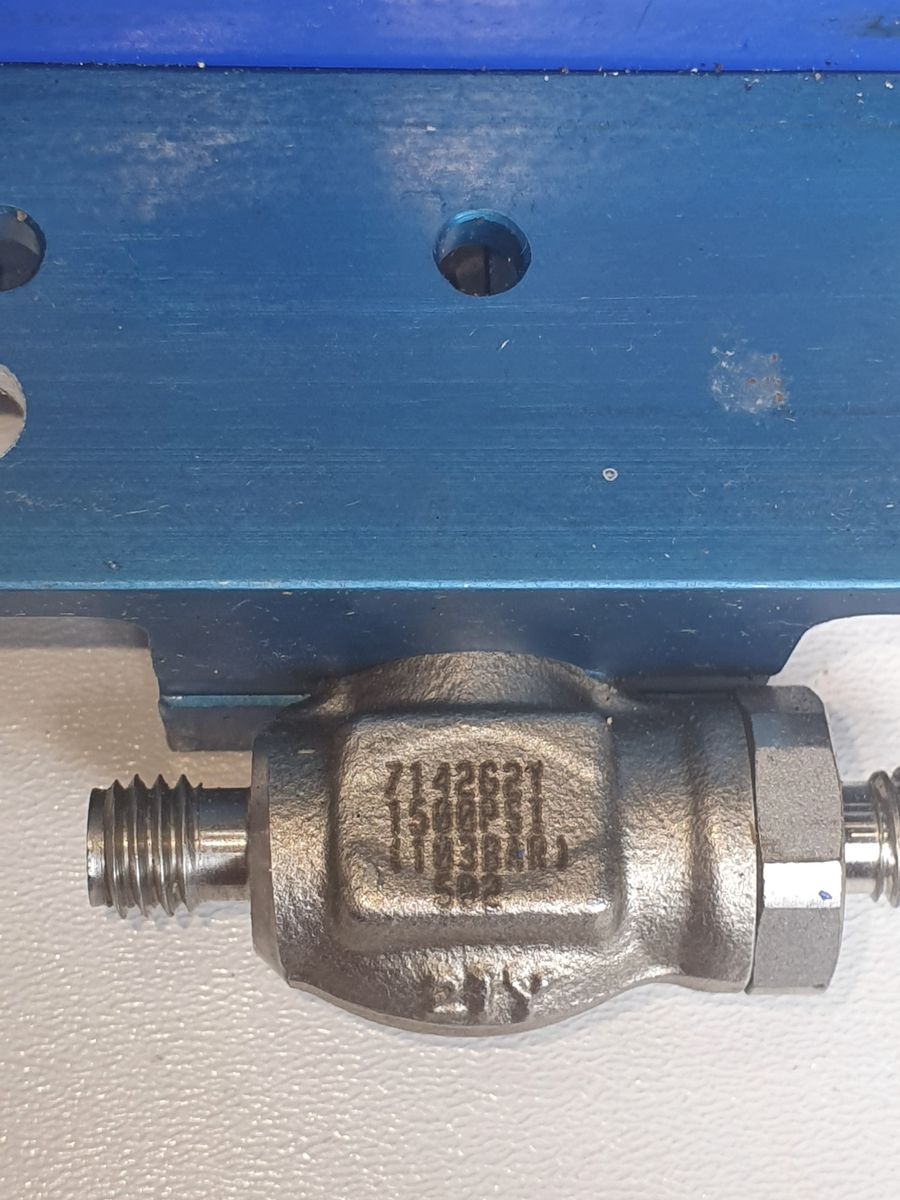

Hoke 7142G2Y

	Connections - Inlet	1/8" Gyrolok
Connections - Outlet	1/8" Gyrolok
Body Material	316 Stainless Steel
Operating Pressure Range	1500 psig at 70° F (103 bar at 21° C)
Operating Temperature Range	-40 to +350 ºF-40 to +176 ºC
Orifice	0.093 in2.40 mm
Cv	0.23
C	1 9/32 in33.0 mm
E	2 19/32 in66 mm
H	13/32 in10 mm
H1	11/32 in9 mm
Panel Hole	19/32 in15 mm
Panel Thickness	3/16 in5 mm
Features & Benefits	Quarter turn handle provides a visual indication of on/off valve position, improving safety. Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability. Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions. Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value. A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fi tting option for the application. Special High Tolerance NPT Thread
