Áramlásmérő

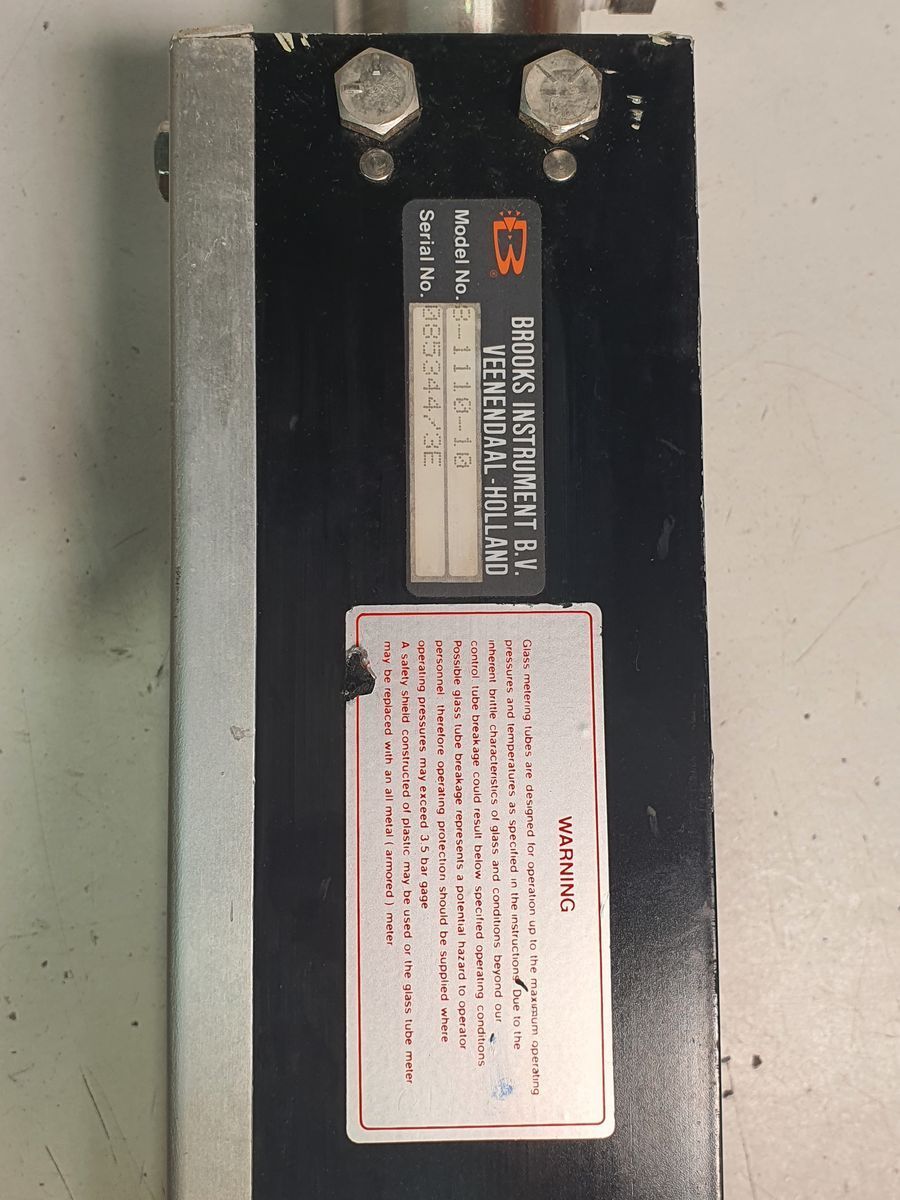

Brooks Instrument 8-1110-10

SKU: 3001

Raktáron

Használt
Munkakörnyezetből származik

Áfát nem tartalmazza: €360,00 (1 elérhető)

Áfával együtt: €435,60

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Fontos: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Garanciális Időszakok Állapot Szerint

Új 12 hónapok

Felújított 3 hónapok

Használt DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Specifications – 8-1110-10 Series Flowmeter

Parameter	Specification
Accuracy	±2% of full scale
Repeatability	±0.5% of full scale
Flow Range	m³ₙ/h (N₂, air at 20 °C)
Operating Temperature (Calibration)	20 °C
Inlet Pressure (Pe)	2.513 bar
Operating Pressure Range	2–14 bar

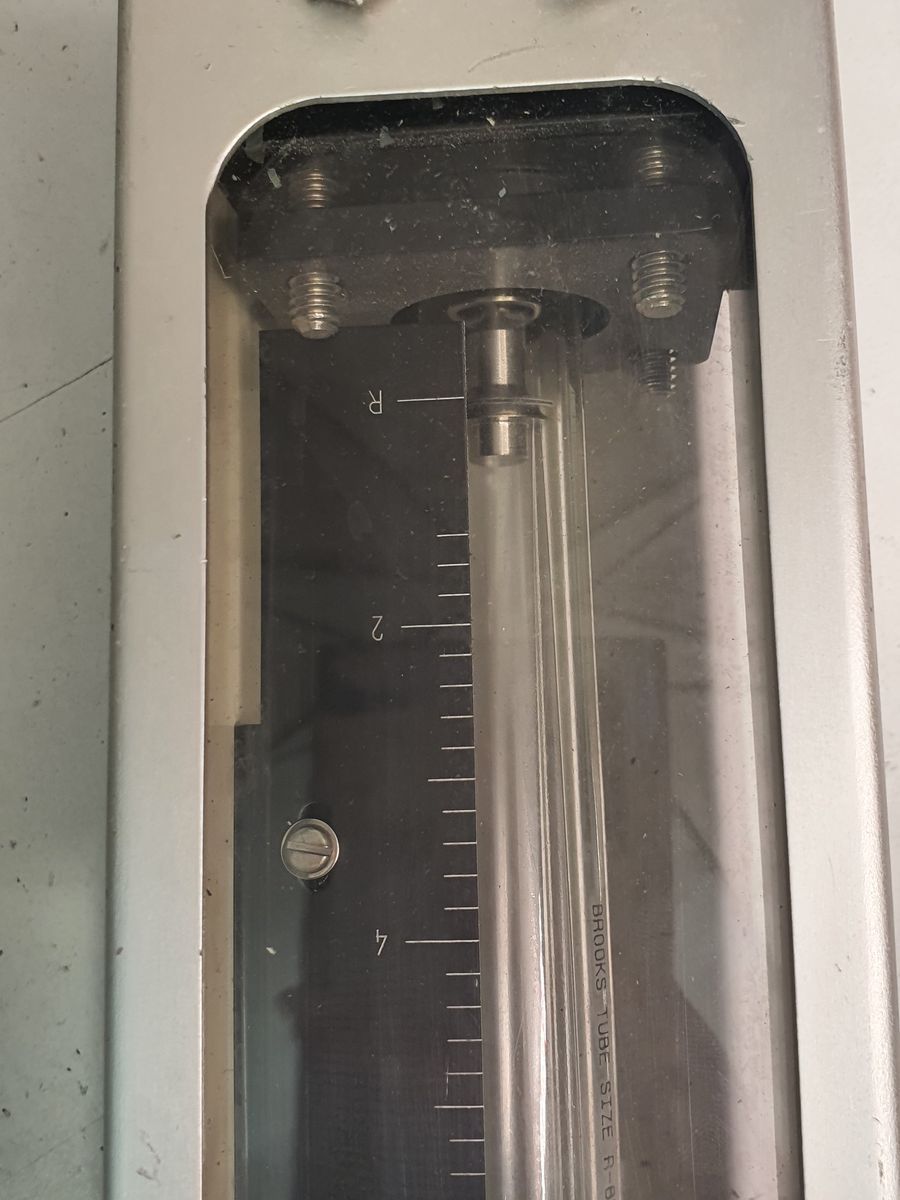

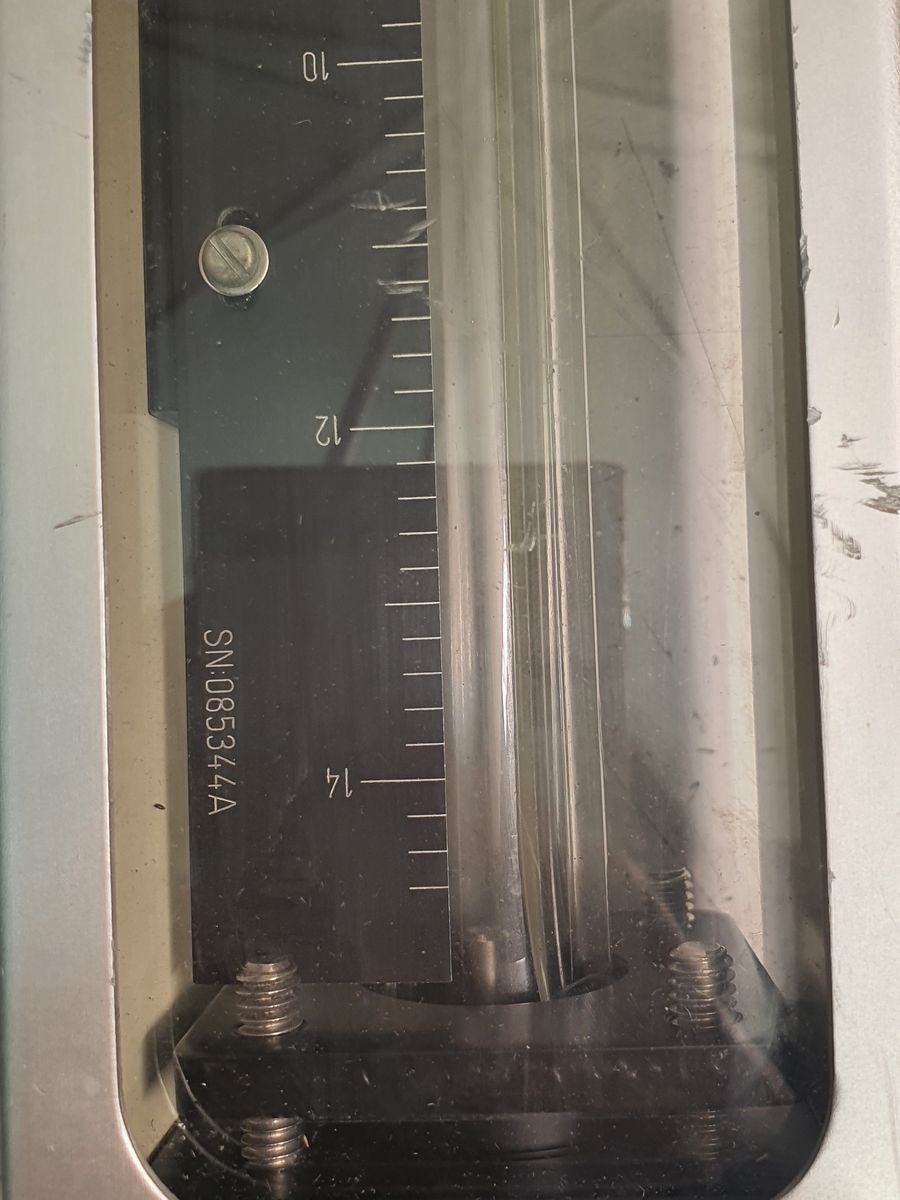

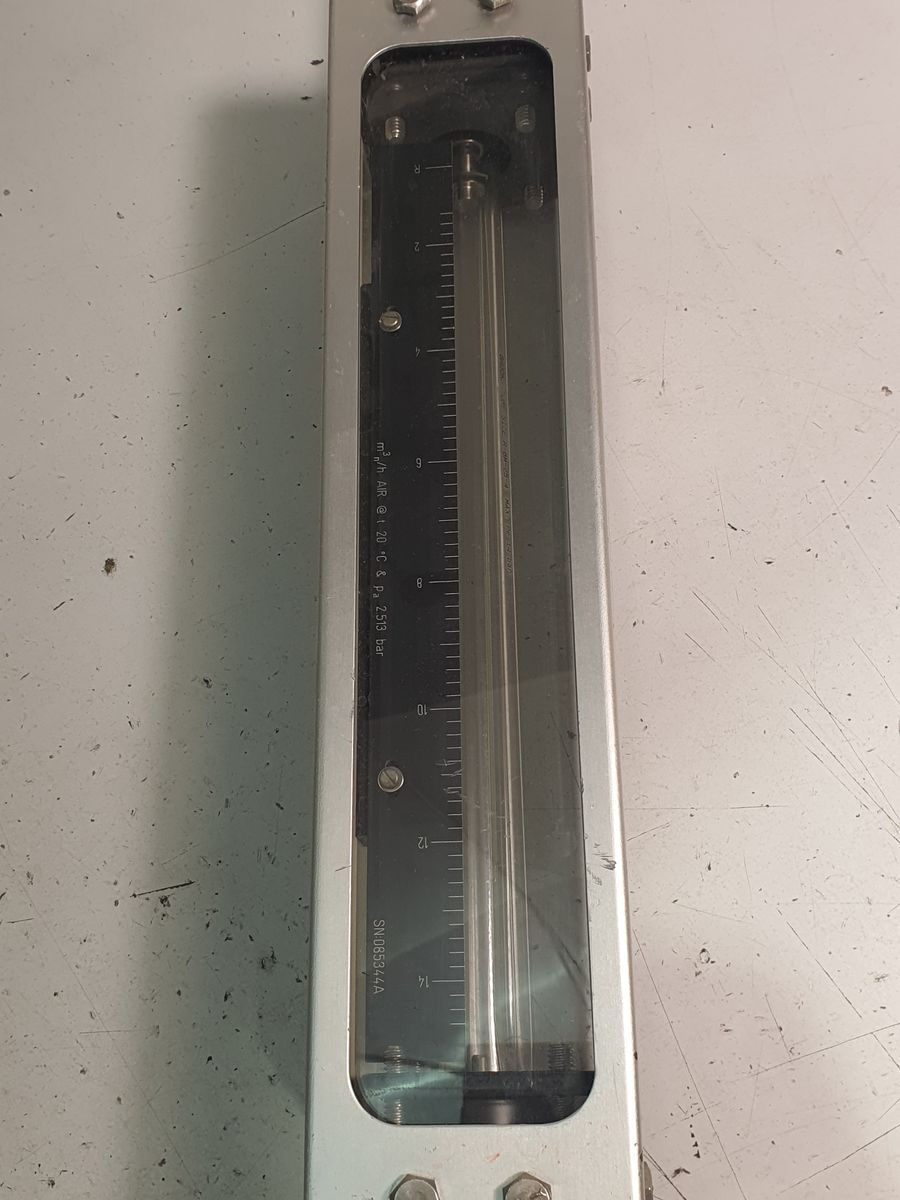

Measuring Tube	Glass tube with precision bore
Construction	Metal frame with replaceable tube and float

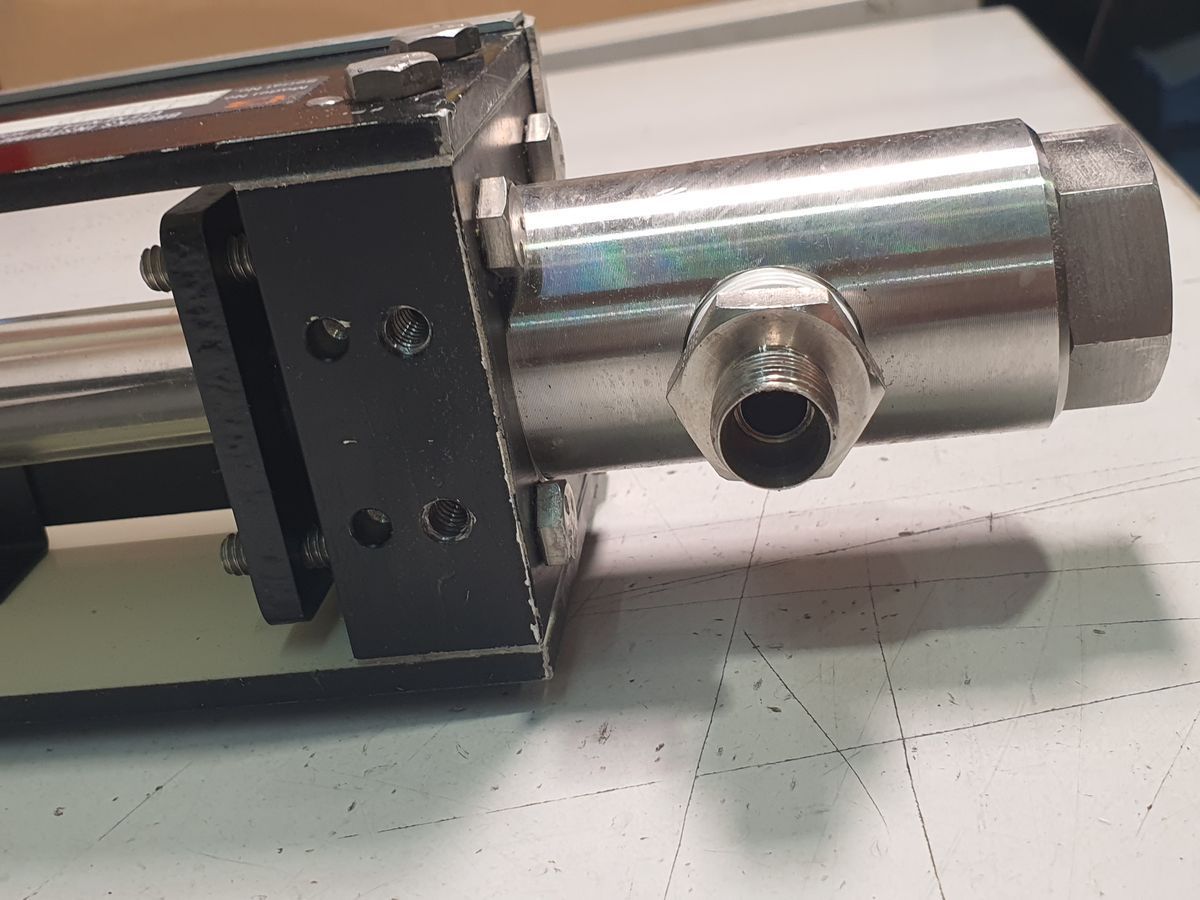

Connection Options	Threaded or flanged, rotatable
Mounting	Vertical or horizontal (depending on configuration)
